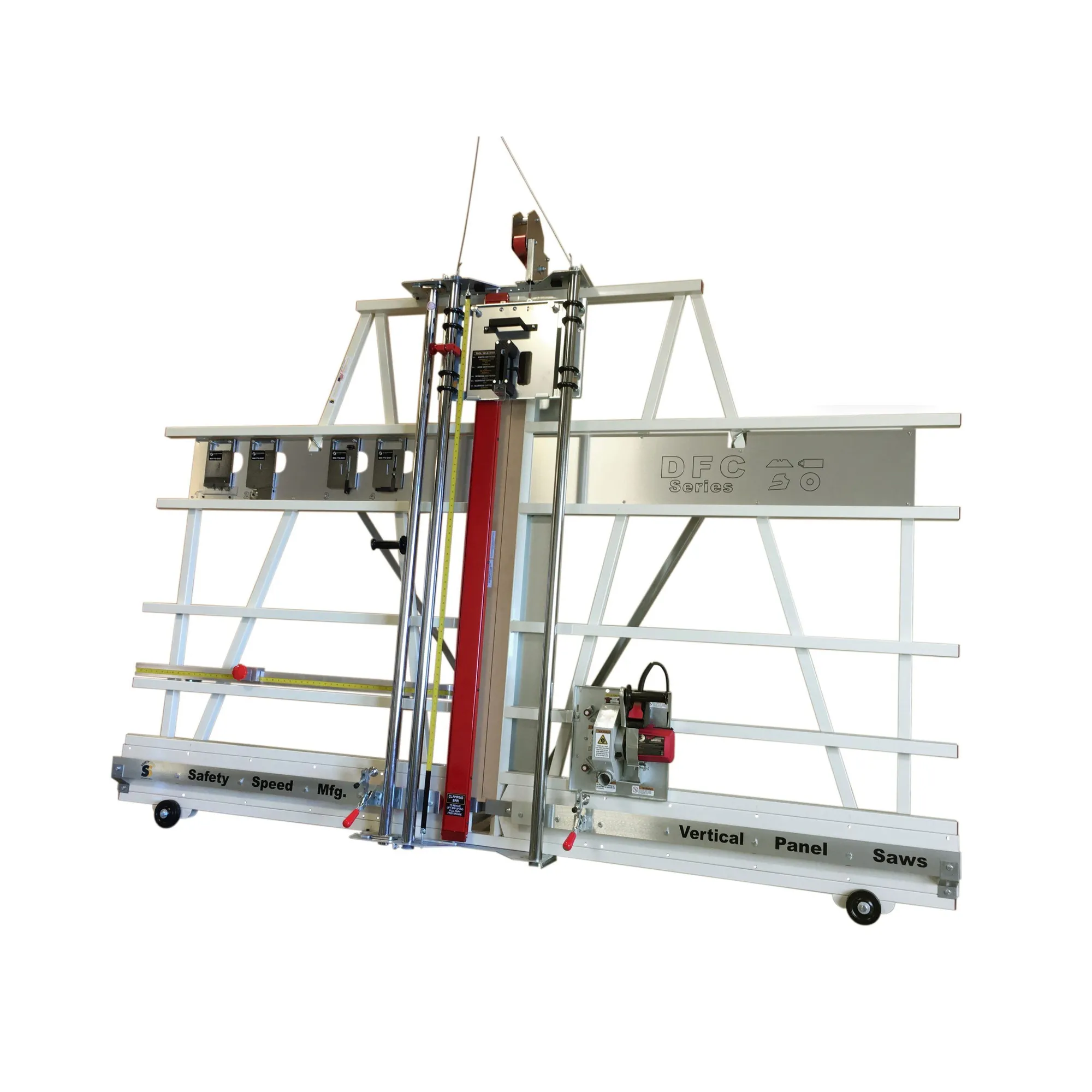

SAFETY SPEED CUT DFC-H5 Panel Saw and Dust Free Cutter Combo has a 64 inch max crosscut. Cuts material up to 1 3/4” thick and cuts multiple sheets. Ideal Cutting Solutions for: Corrugated Plastic, PVC, Foamboard, Aluminum Composite Panel, Aluminum Panel, Wood and MDF Panels, Solid Surface, Veneer, Laminate, Acrylic and Materials up to 64” wide and more...
| Frame Length | 120" | 3,048 mm |
| Max. Crosscut | 64" | 1,625.6 mm |
| Max. Cut Thickness | 1.75" | 44.45 mm |
| Cut Accuracy, Straight and Square | 0.0312" | 0.7937 mm |
| Saw Blade Diameter | 8" | 203.2 mm |
| Motor | 3.2 hp | 2.4 kW |
| Voltage | 120 V | 120 V |
| Amps | 15 | 15 |
| Dimensions | 90" x 120" x 36" | 90" x 120" x 36" |
| Shipping Dimensions | 120" x 36" x 90" | 120" x 36" x 90" |
| Shipping Weight | 660 lb | 299.4 kg |
OPTIONAL MOTORS:
3.25HP, 15 amp, 120V
3.25HP, 220V
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
