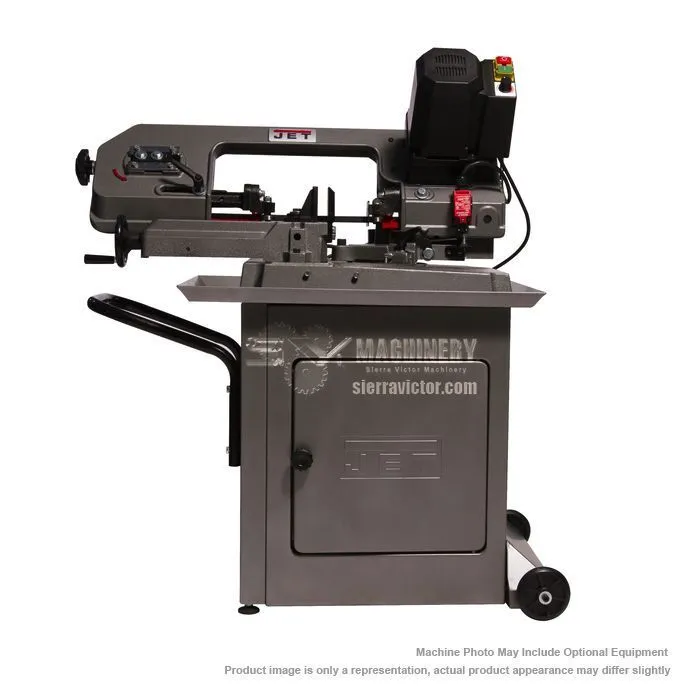

This JET HBS-56MVS Variable Speed, Mitering bandsaw packs the features in a small package. The exclusive 5x6 Portable Variable Speed Mitering Bandsaw includes a newly designed motor with a 3-step gear transmission for unprecedented torque output. The versatile swiveling head allows precision cuts without the hassle of moving the material.
| Round at 90° | 5 in. | 5 in. |
| Round at 45° | 3-3/4 in. | 3-3/4 in. |
| Rectangle at 90° | 5 x 6 in., 2 x 6 in. | 5 x 6 in., 2 x 6 in. |
| Rectangle at 45° | 3-3/4 x 2-1/3 in. | 3-3/4 x 2-1/3 in. |
| Rectangle at 60° | 1-1/4 x 1-3/4 in., 5 x 1-3/4 in. | 1-1/4 x 1-3/4 in., 5 x 1-3/4 in. |
| Blade Size | 1/2 x 0.025 x 64-1/2 in. | 1/2 x 0.025 x 64-1/2 in. |
| Blade Wheel Diameter | 7.375" | 187.32 mm |
| Blade Speed | Variable, 80-230 sfpm | Variable, 80-230 sfpm |
| Motor | 1/2 HP | 1/2 HP |
| Power | 115v, 1-Phase | 115v, 1-Phase |
| Bed Height | 28" | 711.2 mm |
| Throat Depth | 5" | 127 mm |
| Vise Swivels | 0 - 60° | 0 - 60° |
| Dimensions | 38.58 x 20.47 x 47.3 in. (Bow Lowered) | 38.58 x 20.47 x 47.3 in. (Bow Lowered) |
| Weight | 147 lbs. | 147 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Limited
