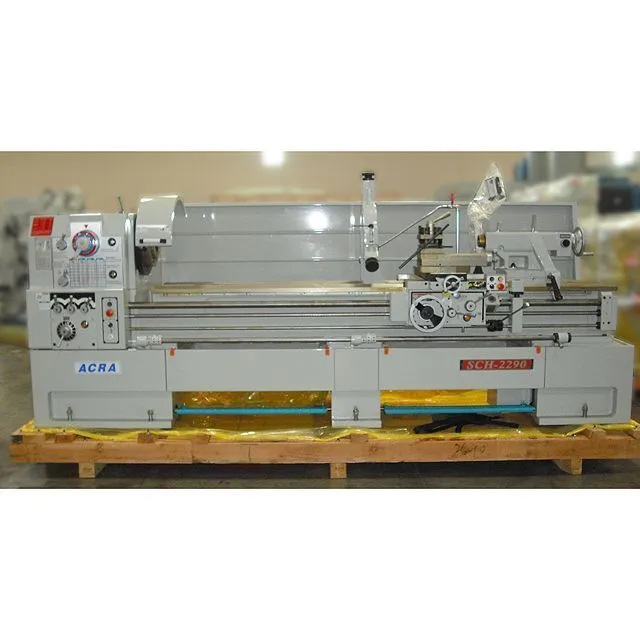

ACRA SCH Precision Engine Lathe has a 22 inch swing and 90 inch distance between centers.15 HP Main MotorExtremely low noise level. Foot brake pedal provided. Wider bedway which absorbs vibration.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 22" | 558.8 mm |
| Distance Between Centers | 90" | 2,286 mm |
| Spindle Bore | 4.094" | 103.99 mm |
| Spindle Nose | D1-11 | D1-11 |
| Motor | 15 hp | 11.2 kW |
| Dimensions | 155.12 x 45.27 x 66.9 in. | 155.12 x 45.27 x 66.9 in. |
| Weight | 7,672 lbs. | 7,672 lbs. |
*Optional: 20 HP (15 kW)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for Price:
Steady Rest (1-3/5” ~ 10”)
Large Steady Rest (7-1/2" ~ 15")
7" FollowRest
20" Face Plate
Taper Attachment
Taper Attachment Install
Newall Digital Read-Out-14" X 60" DP700
Newall Digital Read-Out-14" X 60” NMS300
Newall Digital Read-Out-14" X 80" DP700
Newall Digital Read-Out-14" X 80" NMS300
Newall Digital Read-Out-14" X 120" DP700
Newall Digital Read-Out-14" X 120” NMS300
Newall Digital Read-Out-14" X 160" DP700
Acu-Rite Digital Read-Out-16" X 60" 203
Acu-Rite Digital Read-Out-16" X 90" 203
Acu-Rite Digital Read-Out-16" X 120" 203
Acu-Rite Digital Read-Out-16" X 60” 303
Acu-Rite Digital Read-Out-16" X 90” 303
Acu-Rite Digital Read-Out-16" X 120” 303
Sony or Fagor or Mitutoyo Digital Read-Out
D.R.O. Installation
Aloris Tool Post Set (CA) 5pc
Import Quick Change Tool Holder
Live Center MT 5
20” 4 Jaw Chuck (China)
16” 4 JawChuck
Micro Carriage Stop
4 Position Carriage Stop
**60” & 90” Lathe add Rapid Travel
