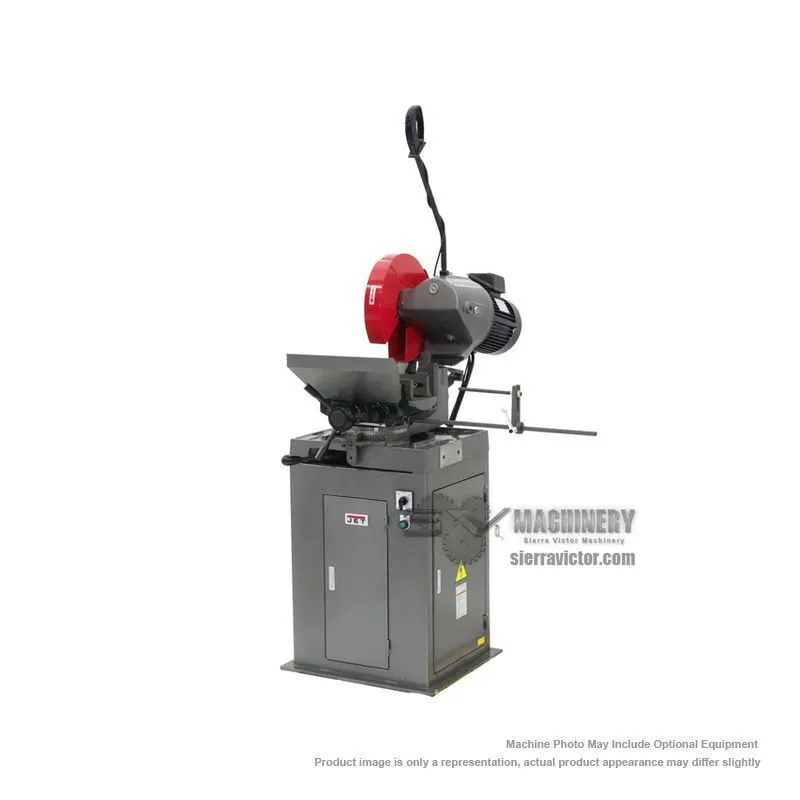

NEW JET J-FK350-4K
USD $9,415.00
Overview
Description
The JET J-FK350-4K is a 350mm (14") Ferrous Cold Saw for steel, stainless and tough to cut alloys. Double self centering vise with adjustable gibs secures the material for burr free cuts. Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform. Flood style coolant with flow control system extends blade life. 30" adjustable length material stop.
Specifications
| Material Type | Ferrous | Ferrous |
|---|---|---|
| Max. Blade Diameter | 350 mm | 13.78" |
| Tubing Round at 45° | 3.5 in. | 3.5 in. |
| Tubing Round at 90° | 4.5 in. | 4.5 in. |
| Solid Round at 45° | 1.75 in. | 1.75 in. |
| Solid Round at 90° | 2 in. | 2 in. |
| Tubing Rectangle at 45° | 3.5 x 3.5 in. | 3.5 x 3.5 in. |
| Tubing Rectangle at 90° | 5.5 x 3.75 in. | 5.5 x 3.75 in. |
| Tubing Square at 45° | 3.5 in. | 3.5 in. |
| Tubing Square at 90° | 4.25 in. | 4.25 in. |
| Solid Square at 45° | 1.75 in. | 1.75 in. |
| Solid Square at 90° | 2 in. | 2 in. |
| Blade Speeds | 44, 88 rpm | 44, 88 rpm |
| Motor | 2 HP | 2 HP |
| Voltage | 230v, 3-phase | 230v, 3-phase |
| Max. Vise Opening | 6" | 152.4 mm |
| Shipping Weight | 794 lb | 360.2 kg |
| Dimensions | 50 x 28 x 60 in. | 50 x 28 x 60 in. |
| Weight | 794 lbs. | 794 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Limited
