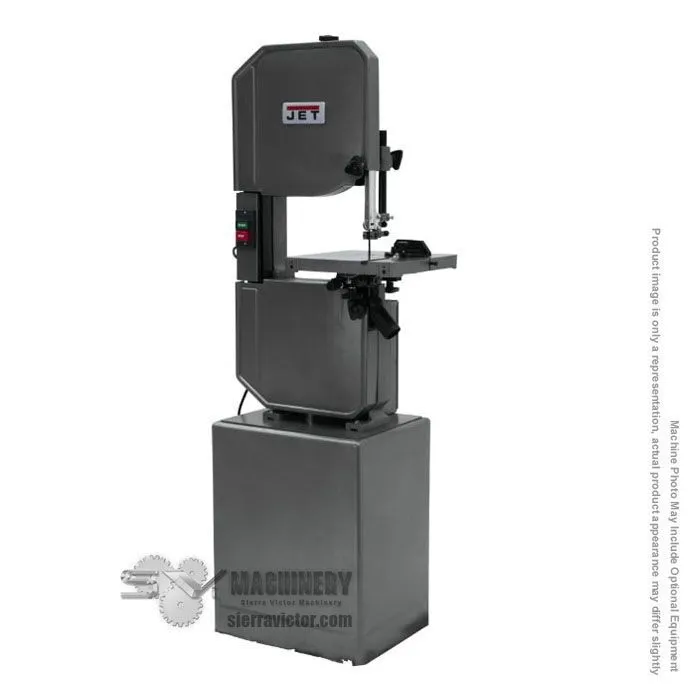

The JET J-8203K Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials.
| Throat Depth | 13.5" | 342.9 mm |
| Height Capacity (Max.) | 6" | 152.4 mm |
| Blade Size | 3/8 x .025 x 92-1/2 in. | 3/8 x .025 x 92-1/2 in. |
| Blade Length | 92.5 in. | 92.5 in. |
| Blade Width | 1/8 - 3/4 in. (Min.-Max.) | 1/8 - 3/4 in. (Min.-Max.) |
| Saw Blade Speeds | Metal: 39, 57, 78, 107, 142, 196, 278 sfpm / Wood: 3,300 sfpm | Metal: 39, 57, 78, 107, 142, 196, 278 sfpm / Wood: 3,300 sfpm |
| Table Size | 14 x 14 in. | 14 x 14 in. |
| Table Height | 44" | 1,117.6 mm |
| Table Tilt | 15° L, 45° R | 15° L, 45° R |
| Motor | 1 HP, | 1 HP, |
| Power | 230/460v, 3-Phase | 230/460v, 3-Phase |
| Prewired | 230v | 230v |
| Dimensions | 25-1/2 x 22-3/8 x 73-1/2 in. | 25-1/2 x 22-3/8 x 73-1/2 in. |
| Weight | 280 lbs. | 280 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
