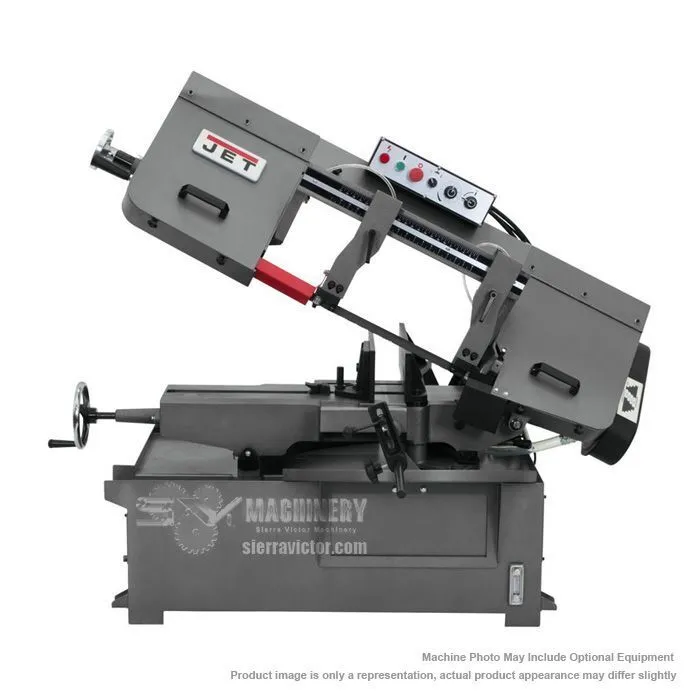

JET MBS-1014W-3 Mitering Horizontal bandsaw's unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
| Cutting Capacity | 10 x 14 in. (W x D) | 10 x 14 in. (W x D) |
| Round at 90° | 10 in. | 10 in. |
| Round at 45° | 9 in. | 9 in. |
| Rectangle at 90° | 10 x 14 in. | 10 x 14 in. |
| Rectangle at 45° | 9 x 8-1/2 in. | 9 x 8-1/2 in. |
| Blade Size | 1 x .035 x 130 in. | 1 x .035 x 130 in. |
| Blade Length | 130" | 3,302 mm |
| Blade Wheel Diameter | 14" | 355.6 mm |
| Blade Speed | 82, 132, 210, 330 sfpm | 82, 132, 210, 330 sfpm |
| Motor | 3 HP | 3 HP |
| Power | 230/460v, 3-Phase | 230/460v, 3-Phase |
| Prewired | 230v | 230v |
| Bed Height | 25" | 635 mm |
| Vise Swivels | 45° | 45° |
| Head Movement | 45° | 45° |
| Dimensions | 26 x 69 x 44 in. | 26 x 69 x 44 in. |
| Weight | 948 lbs. | 948 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Limited
