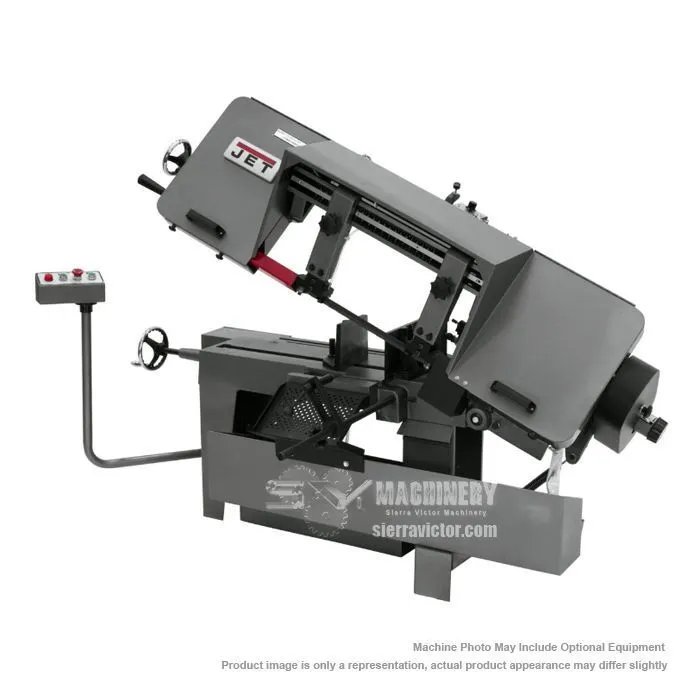

The JET J-7040-4 10 x 16 in. Horizontal Bandsaw has a variable speed drive system that allows the operator to easily fine tune the blade speed. It has a Coolant system, Adjustable material stop and a 1" Bi-Metal blade.
| Cutting Capacity | 10 x 16 in. (W x D) | 10 x 16 in. (W x D) |
| Round at 90° | 10 in. | 10 in. |
| Round at 45° | 10 in. | 10 in. |
| Rectangle at 90° | 7 x 16 in. / 10 x 10 in. | 7 x 16 in. / 10 x 10 in. |
| Rectangle at 45° | 6-1/2 x 11 in. | 6-1/2 x 11 in. |
| Blade Size | 1 x .035 x 135 in. | 1 x .035 x 135 in. |
| Blade Length | 135" | 3,429 mm |
| Blade Wheel Diameter | 14" | 355.6 mm |
| Blade Speed | 100 - 350 sfpm | 100 - 350 sfpm |
| Motor | 2 HP | 2 HP |
| Power | 460v, 3-phase | 460v, 3-phase |
| Bed Height | 23.5" | 596.9 mm |
| Vise Swivels | 45° | 45° |
| Dimensions | 75-1/2 x 33 x 41 in. | 75-1/2 x 33 x 41 in. |
| Weight | 927 lbs. | 927 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Limited
