NEW JET BDB-919

Florida, United States
Asking Price
USD $4,179.00
1 available
3,902Listings|10Followers
Overview
Bench Top Lathes

New JET BDB-919 Belt Drive Bench Lathe. Features 9x19" capacity, 130-2000 rpm, 0.8 hp motor, and robust build. Precision threading with 39 options. Ideal for versatile lathe operations.

Specs
Lathe Type
Belt Drive
Belt Drive
Swing Over Bed
8.75"
222.25 mm
Swing Over Cross Slide
5"
127 mm
Distance Between Centers
18"
457.2 mm
Spindle Bore
0.75"
19.05 mm
Spindle Mount
1-1/2 x 8TPI
1-1/2 x 8TPI
Width of Bed
4.5"
114.3 mm
Tailstock Spindle Travel
1.5625"
39.688 mm
Taper in Tailstock Spindle
MT#2
MT#2
Cross Slide Travel
4.25"
107.95 mm
Compound Slide Travel
1.875"
47.625 mm
Carriage Travel
17.5 in.
17.5 in.
Spindle Taper w/Sleeve
MT#3
MT#3
Range of Spindle Speeds
130-2000 rpm
130-2000 rpm
Number of Spindle Speeds
6
6
Range of Metric Threads
0.5 - 3.5mm
0.5 - 3.5mm
Number of Metric Threads
12
12
Range of Inch Threads
8-56
8-56
Number of Inch Threads
27
27
Number of Longtitudinal Feed Rates
60
60
Range of Longitudinal Feeds (IPR)
0.0006-0.0368 in.
0.0006-0.0368 in.
Follow Rest Capacity
1-3/4 in.
1-3/4 in.
Steady Rest Capacity
1-3/4 in.
1-3/4 in.
Maximum Tool Size
1/2 in.
1/2 in.
Motor
0.8 hp
0.6 kW
Phase
1
1
Voltage
115v
115v
Net Weight
250 lb
113.4 kg
Gross Weight
293 lb
132.9 kg
Dimensions
41 x 22 x 20 in.
41 x 22 x 20 in.
Weight
293 lbs.
293 lbs.

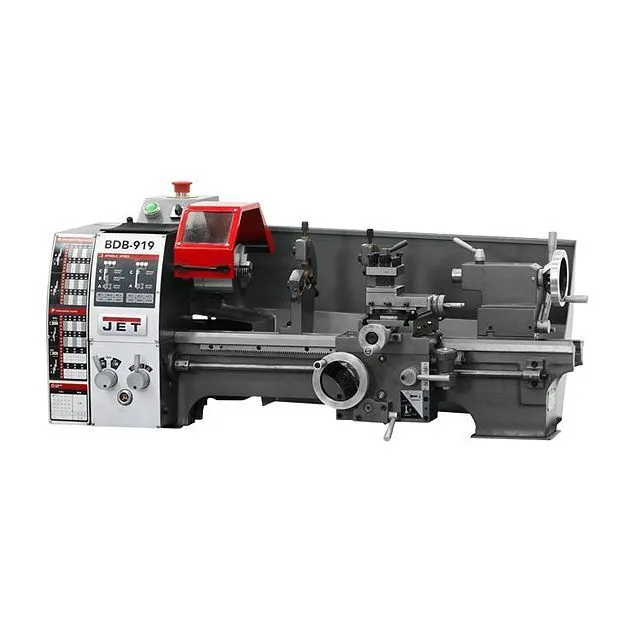

*Lathe shown with optional stand

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
