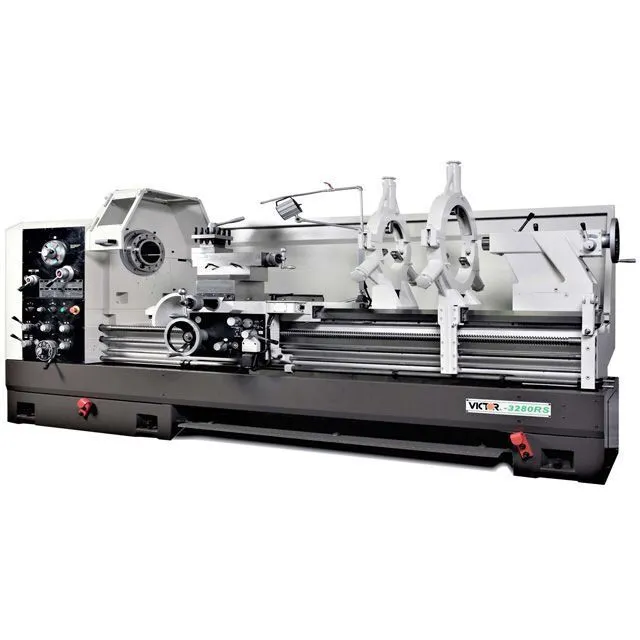

Victor 3200RS series lathe is designed to provide outstanding performance and structural rigidity with 4-1/8" spindle bore and 20 HP main motor.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 32" | 812.8 mm |
| Distance Between Centers | 60" | 1,524 mm |
| Spindle Bore | 4.13" | 104.9 mm |
| Spindle Nose | D1-11 Camlock | D1-11 Camlock |
| Number Of Spindle Speeds | 12 Steps | 12 Steps |
| Range Of Speeds | 15 ~ 1,000 rpm | 15 ~ 1,000 rpm |
| Number of Inch Threads | 2 ~ 28 TPI x 36 kinds | 2 ~ 28 TPI x 36 kinds |
| Motor | 20 hp | 14.9 kW |
| Phase | 3 | 3 |
| Dimensions | 136" x 52" x 71" | 136" x 52" x 71" |
| Weight | 7,280 lbs. | 7,280 lbs. |
*6.02" Optional Spindle bore diameter
*Spindle nose Optional 6.02" bore is A2-11
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
6.02” spindle bore (A2-11) upgrade
15” 3-jaw chuck (D1-11)
15” zero-set 3-jaw chuck with D1-11 back plate
15” zero-set 6-jaw chuck with D1-11 back plate
20” 3-jaw chuck (D1-11)
20” 4-jaw chuck (D1-11)
25” 4-jaw chuck (D1-11)
Steady rest w/ rollers 17.50” (7.25” ~ 17.50” capacity)
Steady rest w/ rollers 11.80” (3.25” ~ 11.80” capacity)
Steady rest w/ rollers 24.00” (17” ~ 24” capacity)
Follow rest
Face plate 30” (D1-11)
Micro carriage stop
Live center M.T. #5
Taper turning attachment
Halogen work light
On-carriage splash guard
Full length splash guard
Quick change tool set 1-1/4” (one tool post & 5 holders: #1,2,4,7,10)
2-way rapid traverse upgrade (factory install only)
4-way rapid traverse upgrade (factory install only)
