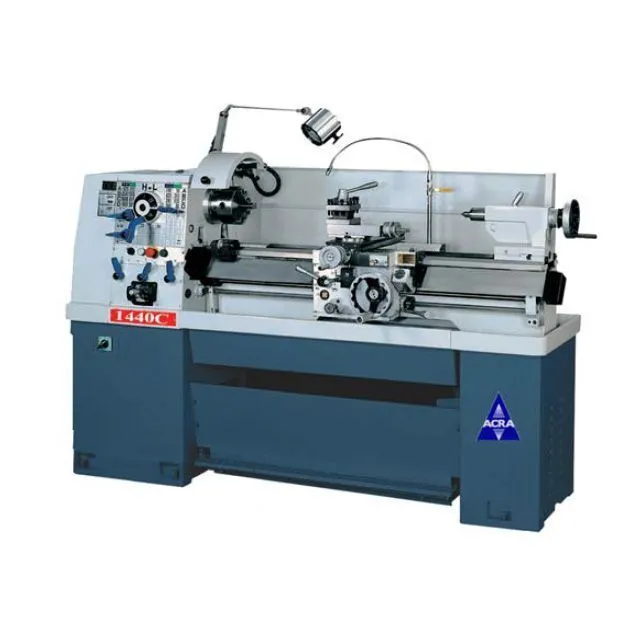

ACRA 1440C Precision Engine Lathe has a 14" x 40" capacity.This machine is Made in Taiwan.Acra’s 1440C Precision Gap Bed Engine Lathe offers the perfect balance between precision and compact size for production machine shops, toolmakers, or school shops.
| Lathe Type | Precision Engine | Precision Engine |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Spindle Nose | D1-4 | D1-4 |
| Motor | 5 hp | 3.7 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Weight | 2,700 lbs. | 2,700 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Taper Attachment
Taper Attachment Installation
Lever Type 5C Collet Closer JFK
Import Collet Closer (Taiwan)
Newall Digital Read-Out 8" x 40" DP700
Newall Digital Read-Out 8" x 40" NMS300
Acu-Rite Digital Read-Out 8" x 40" 203
Acu-Rite Digital Read-Out 8" x 40" 303
Fagor or Sony Digital Read-Out
Import Quick Change Tool Holder
Aloris Tool Post Set (BXA) 5pc
Live Center MT#3
5 HP ~ 1 Phase Motor - add (P.O.R)
8" 3-Jaw Chuck (Exchange for 6" 3-Jaw Chuck)
2 Speed Motor (16 Speeds) 3 PH Only
