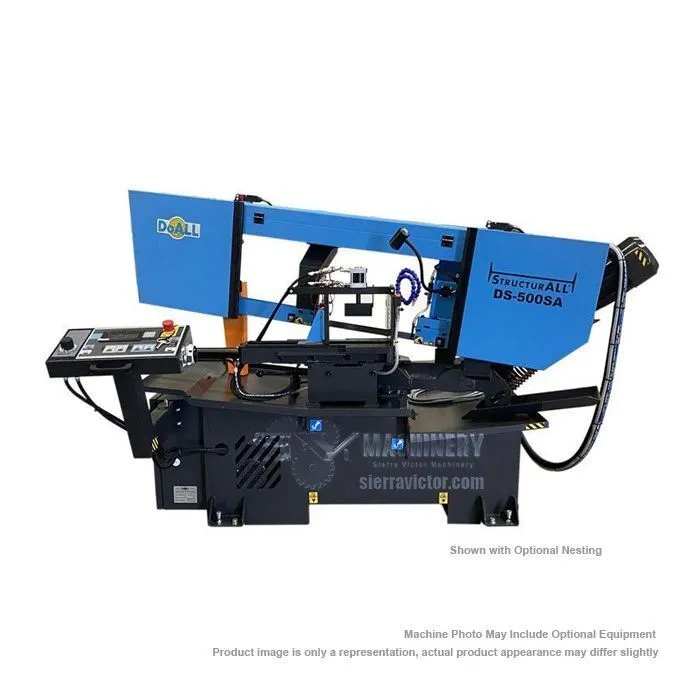

The DoALL DS-500SA StructurALL semi-automatic, dual-miter metal-cutting band saw is designed for cutting material both linear and at angles.
Also classified as a horizontal “scissor saw,” the DS-500SA is ideal for machine shops, metal service centers, repair facilities and industrial manufacturing plants that need to cut structural metal, tube and profile material. Miter angle cuts are possible up to 60° left and right, making the DS-500SA an invaluable addition to your team.
| Production Level | Intermediate/Medium | Intermediate/Medium |
| Cutting Capacity | W 19.5 x H 13 in. (495 x 330mm) | W 19.5 x H 13 in. (495 x 330mm) |
| Round at 45° | 14" | 355.6 mm |
| Rectangle at 45° | 15.75 x 7.5 in. (400 x 190mm) | 15.75 x 7.5 in. (400 x 190mm) |
| Round at 60° | 12.2" | 309.88 mm |
| Rectangle at 60° | 10.6 x 12.6 in. (270 x 320mm) | 10.6 x 12.6 in. (270 x 320mm) |
| Maximum Nesting Capacity | 19.7 x 8.7 in. (500 x 220mm) | 19.7 x 8.7 in. (500 x 220mm) |
| Minimum Nesting Capacity | 0.20 in. (5mm) | 0.20 in. (5mm) |
| Blade Size | 1.25 x 188 in. (W x L) | 1.25 x 188 in. (W x L) |
| Blade Speed | 65-328 fpm (20-100mpm) | 65-328 fpm (20-100mpm) |
| Power | 230v or 460v -60Hz-3ph, Wye configuration ** | 230v or 460v -60Hz-3ph, Wye configuration ** |
| Amperage Draw | (FLA)(460V - 7) (230V - 14) | (FLA)(460V - 7) (230V - 14) |
| Hydraulic Motor | .5 HP | .5 HP |
| Hydraulic Oil Tank Capacity | 3 gal | 11.4 L |
| Coolant Motor | 0.6 HP(0.44kW) | 0.6 HP(0.44kW) |
| Coolant Tank Capacity | 5 gal | 18.9 L |
| Material Pass Height | 32" | 812.8 mm |
| Miter Angle | 60° left and 60° right | 60° left and 60° right |
| Dimensions | 114 x 43 x 56 in. (2873 x 1080 x 1420mm) | 114 x 43 x 56 in. (2873 x 1080 x 1420mm) |
| Weight | 1,631 lbs. | 1,631 lbs. |
** Must Specify Voltage at Order Placement
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

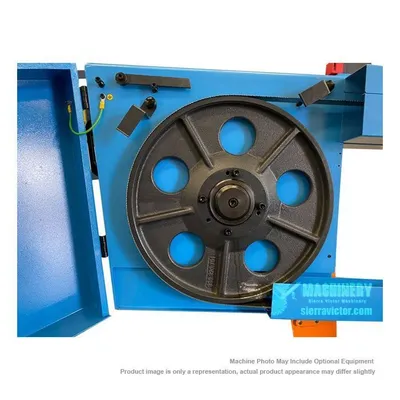

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional items - Call for price:
*6.6 ft (2000mm) Heavy-duty input conveyor for angle cutting with drip pan/gutter - 20.5" (520mm) roller width - 1142 lbs/ft or 1700kg/m capacity
*6.6 ft (2000mm) Heavy-duty output conveyor for angle cutting with drip pan/gutter - 20.5" (520mm) roller width - 1142 lbs/ft or 1700kg/m capacity
*6.6 ft (2000mm) Input or output conveyor with drip pan/gutter - 20.5" (520mm) roller width - 672 lbs/ft or 1000kg/m capacity
*5 ft Idler Conveyor
*10 ft Idler Conveyor
*Additional conveyor roller
*Single fixed vertical guide roller - 20.5" (520mm) roller width - 7.9" (200mm) height - Mounts to the RDT
*Single adjustable vertical guide roller - Requires RB for operation

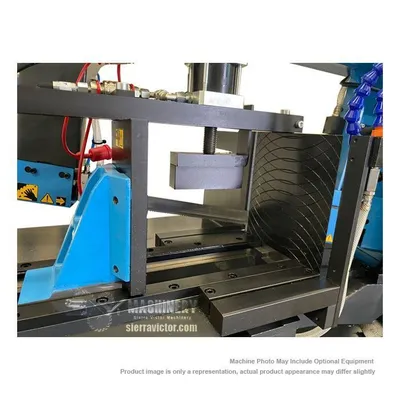

*Hydraulic vertical clamp for nesting
*Laser line generator
*5 ft. Tape work stop (Mounts on Conveyor)
*10 ft. Tape work stop (Mounts on Conveyor)
*5 ft. Digital work stop (Mounts on Conveyor)
*10 ft. Digital work stop (Mounts on Conveyor)
*Wear parts service kit - contains wear plates, guides, band brushes
*Magnetic wand chip remover
*Additional USB stick of manuals
*A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
*Four (4) hours installation and operator training
*DoALL Cut Above 10 Year Warranty Annual Investment
