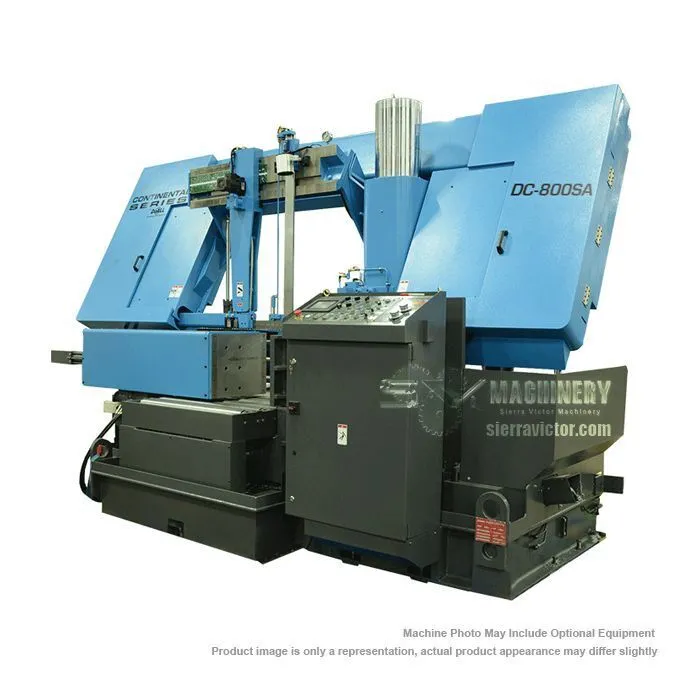

NEW DOALL DC-800SA

Florida, United States
3,882Listings|10Followers
Overview
Horizontal Band Saws

The DC-800SA Semi-Automatic Continental Series high production, horizontal band saw by DoALL is designed for cutting a wide range of metals on a production basis. Standard Features: 15 HP Band Drive Motor, Hydraulic Shuttle Roller Table and a Programmable Logic Controller for All Machine Functions.

Specs
Production Level
High
High
Cutting Capacity Round
31.5 in. (800mm)
31.5 in. (800mm)
Cutting Capacity Rectangle
39.3 x 31.5 in. (1000x800mm)
39.3 x 31.5 in. (1000x800mm)
Blade Size
2.625 x 347 in. (W x L)
2.625 x 347 in. (W x L)
Blade Tension
Hydraulic
Hydraulic
Blade Speed
52-275 fpm
52-275 fpm
Blade Motor
15 HP
15 HP
Power
230v-60Hz-3ph, Wye configuration
230v-60Hz-3ph, Wye configuration
Amperage Draw
61 Amps (FLA)
61 Amps (FLA)
Hydraulic Motor
3 HP
3 HP
Hydraulic Oil Tank Capacity
22.5 gal
85.2 L
Coolant System
Flood
Flood
Coolant Motor
1/4 HP
1/4 HP
Coolant Tank Capacity
58 gal
219.6 L
Material Pass Height
28.5"
723.9 mm
Dimensions
172 x 85 x 105 in.
172 x 85 x 105 in.
Weight
24,251 lbs.
24,251 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional items - Call for price:
* 10 ft. idler conveyor
* 5 ft. idler conveyor with filler plates
* Out of square detection
* Additional USB stick of manuals
* Laser line
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards.
* DoALL Cut Above 10 Year Warranty Investment
