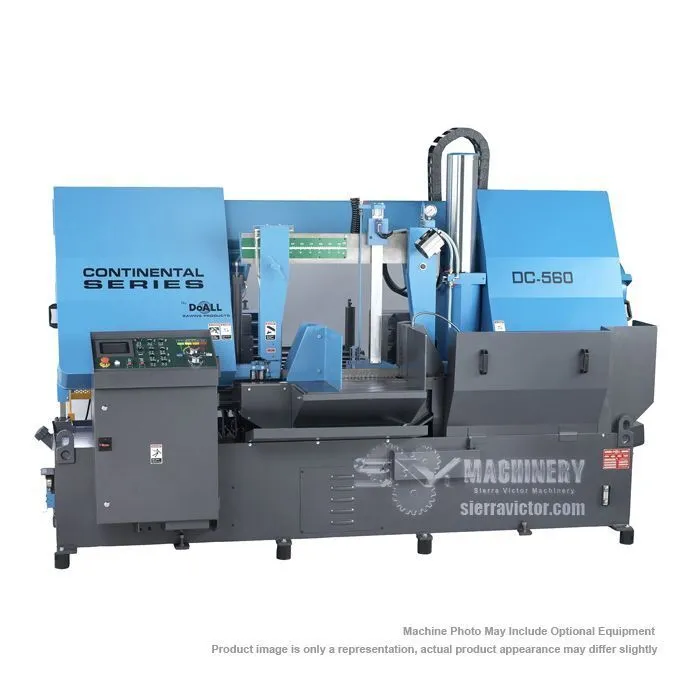

NEW DOALL DC-560SA

Florida, United States
3,882Listings|10Followers
Overview
Horizontal Band Saws

The DC-560SA (semi-automatic) Continental Series horizontal production band saw by DoALL is designed for cutting a wide range of metals. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL DC-560SA is the perfect choice.

Specs
Production Level
High
High
Cutting Capacity Round
22 in. (560mm)
22 in. (560mm)
Cutting Capacity Rectangle
22 x 31-1/2 in. (560 x 800mm) (W x H)
22 x 31-1/2 in. (560 x 800mm) (W x H)
Blade Size
2 x 268 in. (W x L)
2 x 268 in. (W x L)
Blade Tension
Hydraulic
Hydraulic
Blade Speed
52-430 fpm
52-430 fpm
Blade Motor
10 Hp
10 Hp
Power
230v-60Hz-3ph, Wye configuration
230v-60Hz-3ph, Wye configuration
Amperage Draw
38 Amps (FLA)
38 Amps (FLA)
Hydraulic Motor
3 Hp
3 Hp
Hydraulic Oil Tank Capacity
31 gal
117.3 L
Coolant System
Flood coolant
Flood coolant
Coolant Motor
1/4 HP
1/4 HP
Coolant Tank Capacity
37 gal
140.1 L
Material Pass Height
33.5"
850.9 mm
Dimensions
130 x 77 x 79 in.
130 x 77 x 79 in.
Weight
8,378 lbs.
8,378 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional items - Call for price:
* 10 ft Medium-duty idler conveyor 24" between frames. Roller capacity 850 Ibs.
* 5 ft Medium-duty idler conveyor 24" between frames. Roller capacity 850 Ibs.
* Out of square detection
* Additional USB stick of manuals
* Laser line
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* DoALL Cut Above 10 Year Warranty Annual Investment
