New | in-Stock

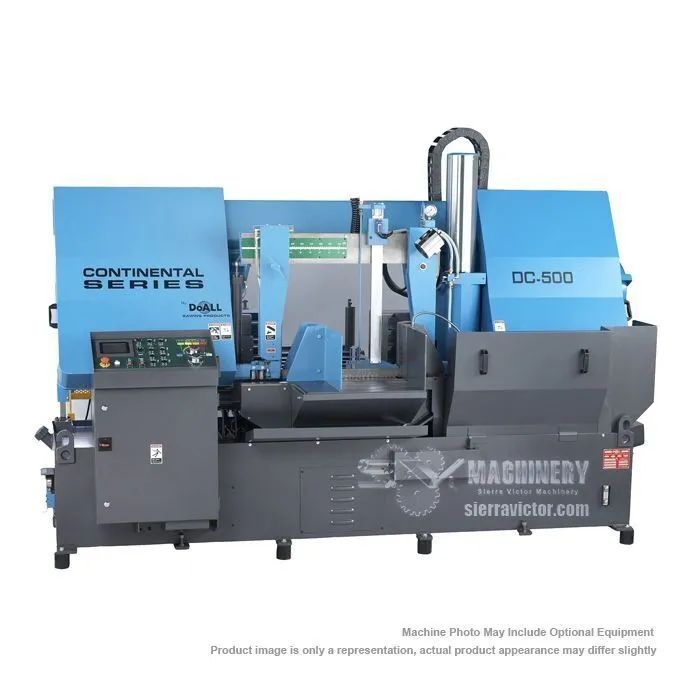

NEW DOALL DC-500SA

Florida, United States
3,882Listings|10Followers
Overview
Horizontal Band Saws

The DC-500SA Semi-Automatic Continental Series of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently.

Specs
Production Level
High
High
Cutting Capacity Round
20 in. (500mm)
20 in. (500mm)
Cutting Capacity Rectangle
20 x 22 in. (500x560mm)
20 x 22 in. (500x560mm)
Maximum Nesting Capacity
18.9 x 9.4 in. (480 x 240 mm)
18.9 x 9.4 in. (480 x 240 mm)
Minimum Nesting Capacity
9.4 x 3 in. (240 x 80 mm)
9.4 x 3 in. (240 x 80 mm)
Blade Size
215 x 1-1/2 x 0.05 in. (5450 x 41 x 1.3mm)
215 x 1-1/2 x 0.05 in. (5450 x 41 x 1.3mm)
Blade Speed
52-430 fpm (16-128mpm)
52-430 fpm (16-128mpm)
Blade Motor
10 HP (7.5 kW)
10 HP (7.5 kW)
Hydraulic Motor
2 HP (1.5 kW)
2 HP (1.5 kW)
Hydraulic Oil Tank Capacity
29 gal
109.8 L
Coolant Motor
1/4 HP (0.2 kW)
1/4 HP (0.2 kW)
Coolant Tank Capacity
29 gal
109.8 L
Material Pass Height
29.5"
749.3 mm
Dimensions
114 x 61 x 71 in. (2890 x 1550 x 1800mm)
114 x 61 x 71 in. (2890 x 1550 x 1800mm)
Weight
5,732 lbs (2,600 kg)
5,732 lbs (2,600 kg)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional items - Call for price:
Additional 10 ft (3m) Conveyor
Magnetic Chip Remover
