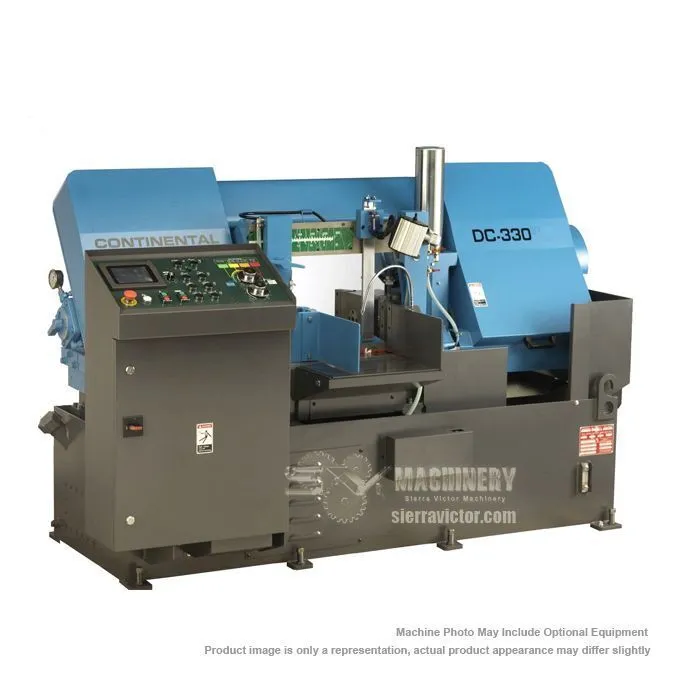

NEW DOALL DC-330SA

Florida, United States
3,882Listings|10Followers
Overview
Horizontal Band Saws

The DoALL DC-330SA (semi-automatic) Continental Series horizontal band saw is designed for cutting a wide range of metals. While DoALL semi-automatic saws do not offer auto-indexing, they do cut single pieces extremely efficiently.

Specs
Production Level
Medium/Intermediate
Medium/Intermediate
Cutting Capacity Round
13 in. (330mm)
13 in. (330mm)
Cutting Capacity Rectangle
15.75 x 13 in. (400 x 330mm) (W x H)
15.75 x 13 in. (400 x 330mm) (W x H)
Blade Size
1.25 x 167 in. (W x L)
1.25 x 167 in. (W x L)
Blade Tension
Hydraulic
Hydraulic
Blade Speed
52-430 fpm
52-430 fpm
Blade Motor
5 HP
5 HP
Power
230v-60Hz-3ph, Wye configuration
230v-60Hz-3ph, Wye configuration
Amperage Draw
16 Amps (FLA)
16 Amps (FLA)
Hydraulic Motor
1 HP
1 HP
Hydraulic Oil Tank Capacity
16 gal
60.6 L
Coolant System
Flood Coolant
Flood Coolant
Coolant Motor
1/4 HP
1/4 HP
Coolant Tank Capacity
21 gal
79.5 L
Material Pass Height
27.5"
698.5 mm
Dimensions
88 x 48 x 61 in.
88 x 48 x 61 in.
Weight
3,638 lbs.
3,638 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional items - Call for price:
* 10 ft Medium-duty idler conveyor 16" between frames. Roller capacity 850 Ibs.
* 5 ft Medium-duty idler conveyor 16" between frames. Roller capacity 850 Ibs.
* Out of square detection
* Additional USB stick of manuals
* Laser line
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards.
* DoALL Cut Above 10 Year Warranty Annual Investment
