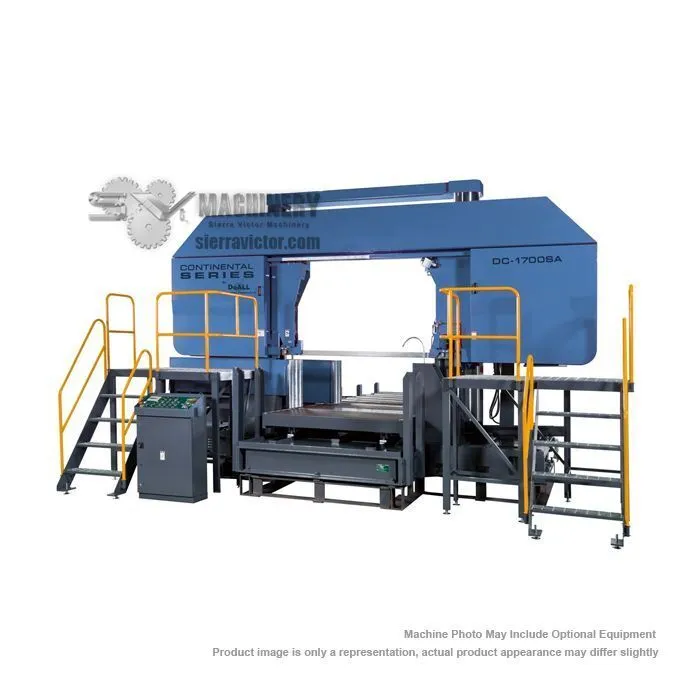

NEW DOALL DC-1700SA

Florida, United States
3,831Listings|9Followers
Overview
Horizontal Dual Column Band Saws

The DC-1700SA Dual Column, Semi-Automatic Continental Series high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently.

Specs
Production Level
High
High
Cutting Capacity Round
51.2 in. (1300mm)
51.2 in. (1300mm)
Cutting Capacity Rectangle
67 x 51.2 in. (1700 x 1300mm)
67 x 51.2 in. (1700 x 1300mm)
Blade Size
512 x 3-3/20 x 0.063 in. (13000 x 80 x 1.6mm)
512 x 3-3/20 x 0.063 in. (13000 x 80 x 1.6mm)
Blade Speed
39-246 fpm (12 – 75 m/min)
39-246 fpm (12 – 75 m/min)
Blade Motor
20 HP (15 kw)
20 HP (15 kw)
Hydraulic Motor
5 HP (3.7kW)
5 HP (3.7kW)
Hydraulic Oil Tank Capacity
43.6 gal
165 L
Coolant Motor
1/4 HP (0.2 kw)
1/4 HP (0.2 kw)
Coolant Tank Capacity
74 gal
280.1 L
Material Pass Height
26.8"
680.72 mm
Dimensions
244 x 110.2 x 149.6 in. (6200 x 2800 x 3800 mm)
244 x 110.2 x 149.6 in. (6200 x 2800 x 3800 mm)
Weight
46,297 lbs (21,000 kg)
46,297 lbs (21,000 kg)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
