NEW DOALL DC-1100SA

Florida, United States
3,831Listings|9Followers
Overview
Horizontal Dual Column Band Saws

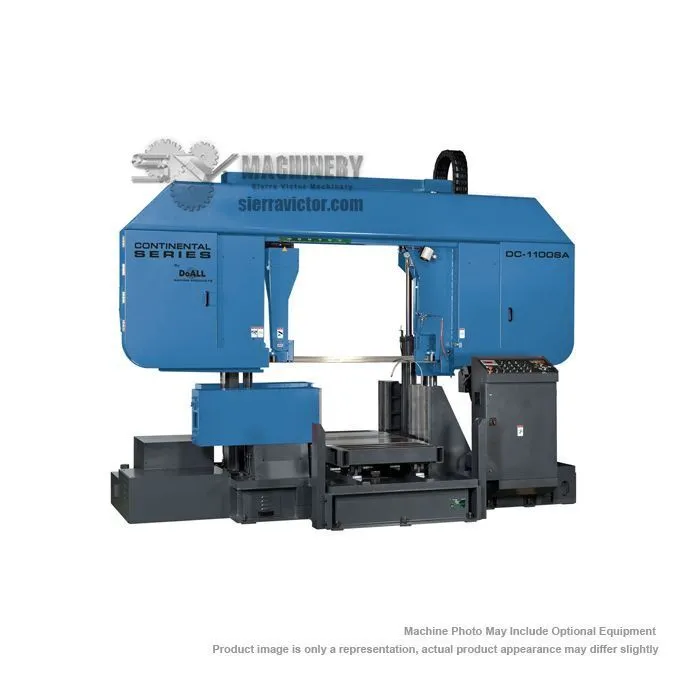

The DC-1100SA Dual Column, Semi-Automatic Continental Series high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently.

Specs
Cutting Capacity Round
43.5 in.
43.5 in.
Cutting Capacity Rectangle
43-1/2 x 43-1/2 in. (1100 x 1100mm)
43-1/2 x 43-1/2 in. (1100 x 1100mm)
Blade Size
394 x 2.64 x 0.063 in. (10000 x 67 x1.6mm) (L x W x Gage)
394 x 2.64 x 0.063 in. (10000 x 67 x1.6mm) (L x W x Gage)
Blade Speed
49-262 fpm (15 - 80 m/min)
49-262 fpm (15 - 80 m/min)
Blade Motor
15 HP (11.1kW)
15 HP (11.1kW)
Hydraulic Motor
3 HP (2.2kW)
3 HP (2.2kW)
Hydraulic Oil Tank Capacity
23.8 gal
90.1 L
Coolant Motor
1/4 HP (0.2 kw)
1/4 HP (0.2 kw)
Coolant Tank Capacity
53 gal
200.6 L
Material Pass Height
26.8"
680.72 mm
Dimensions
181.1 x 94.5 x 128 in. (2400 x 4600 x 3250mm)
181.1 x 94.5 x 128 in. (2400 x 4600 x 3250mm)
Weight
30,865 lbs.
30,865 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
