OUT OF STOCK - CALL FOR AVAILABILITY

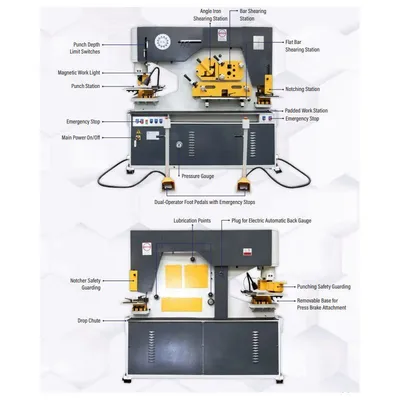

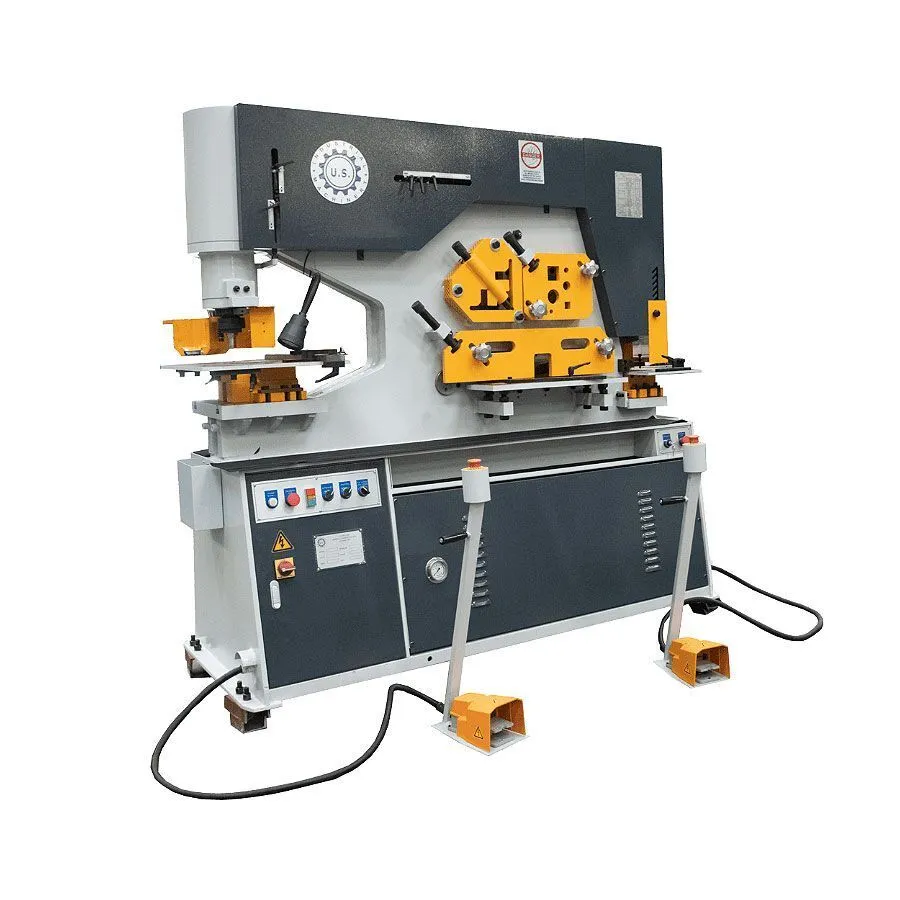

U.S. INDUSTRIAL USHI-155T-DO-XT Hydraulic Ironworker w/30" Extended Punch Throat has a punch tonnage of 155 Tons. Five workstations: punch, plate shear, angle shear, rod shear notcher. This machine also comes with a press brake attachment. Has a 20 HP motor, 3-phase with 220V or 440V.
| Punch Tonnage | 155 T | 140,613.8 kg |
| Punching Thickness | 1.25" | 31.75 mm |
| Punching Diameter | 1.5 in. | 1.5 in. |
| Flat Bar Shear | Thickness 14 W x 1-1/4 in.Thick / Max. Length 23.5 W x 3/4 in. Thick | Thickness 14 W x 1-1/4 in.Thick / Max. Length 23.5 W x 3/4 in. Thick |
| Flat Bar Shear Length | 23.5" | 596.9 mm |
| Angle Shear 90° | 7 x 7 x 5/8 in. | 7 x 7 x 5/8 in. |
| Angle Shear 45° | 3 x 3 x 5/16 in. | 3 x 3 x 5/16 in. |
| Round Bar Shear | 2-1/2 in. | 2-1/2 in. |
| Square Bar Shear | 2-1/8 in. | 2-1/8 in. |
| Notcher | Thickness 5/8 x Width 2-3/8 x Depth 4 in. | Thickness 5/8 x Width 2-3/8 x Depth 4 in. |
| Throat Depth | 30" | 762 mm |
| Stroke Length | 0 - 3-1/8 in. | 0 - 3-1/8 in. |
| Motor | 20 HP | 20 HP |
| Electrics | 220v or 440v, 3-phase (Specify) | 220v or 440v, 3-phase (Specify) |
| Oil Capacity/Reservoir | 64 gal | 242.3 L |
| Dimensions | 105 x 40 x 90 in. | 105 x 40 x 90 in. |
| Weight | 14,960 lbs | 14,960 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for price:
UPIW1500 - Round Punch and Die Set for 66 and 90 Ton Models
UPIW1501 - Round Punch and Die Set for 125 and 155 Ton Models
UPIW1502 - Pipe Notcher Housing Assembly
UPIW1503 - 1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1504 - 3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1505 - 1" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1506 - 1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1507 - 1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1508 - 2" Ironworker Pipe Notching Die for Schedule 40 Pipe
