TENNSMITH CB30 Cleat Bender has a mild steel capacity of 20 gauge and 30 inch max bending.TENNSMITH'S cleat benders are manually operated tools that form uniform drive cleat edges on rectangular duct work in seconds without set up or adjustment. The upper handle forms the cleat and the lower handle opens the tool for easy removal of the material.Heavy cast iron and fabricated steel construction provides long life and trouble-free operation.
| Capacity (ga) - Mild Steel | 20 gauge | 20 gauge |
| Maximum Bending | 30" | 762 mm |
| Depth of Drive Cleat | 0.5" | 12.7 mm |
| Dimensions | 38 x 10 x 11-1/2 in. Handles Removed (LxWxH) | 38 x 10 x 11-1/2 in. Handles Removed (LxWxH) |
| Weight | 150 lbs. | 150 lbs. |

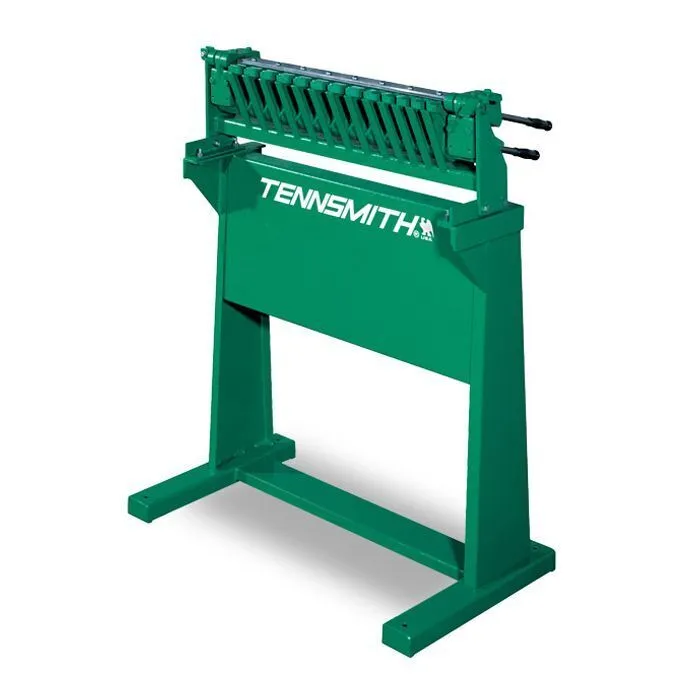

*Shown with Optional Stand
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
