| Swing Over Bed | 22" | 558.8 mm |
| Distance Between Centers | 120" | 3,048 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Spindle Nose | D1-8 | D1-8 |
| Motor | 10 hp | 7.5 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 154" x 46" x 58" | 154" x 46" x 58" |
| Weight | 8,600 lbs. | 8,600 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

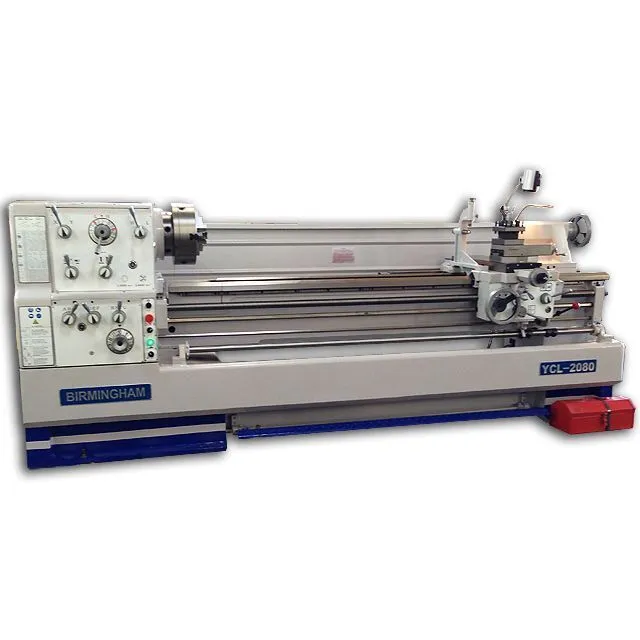

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
10" LARGE STEADY REST W/ ROLLER JAWS
5C HAND LEVER TYPE COLLET CLOSER "JFK" USA
5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT
DIGITAL READOUT: " NEWALL DP-700 " OR " ACU-RITE " OR " UNIQ IMPORT"
