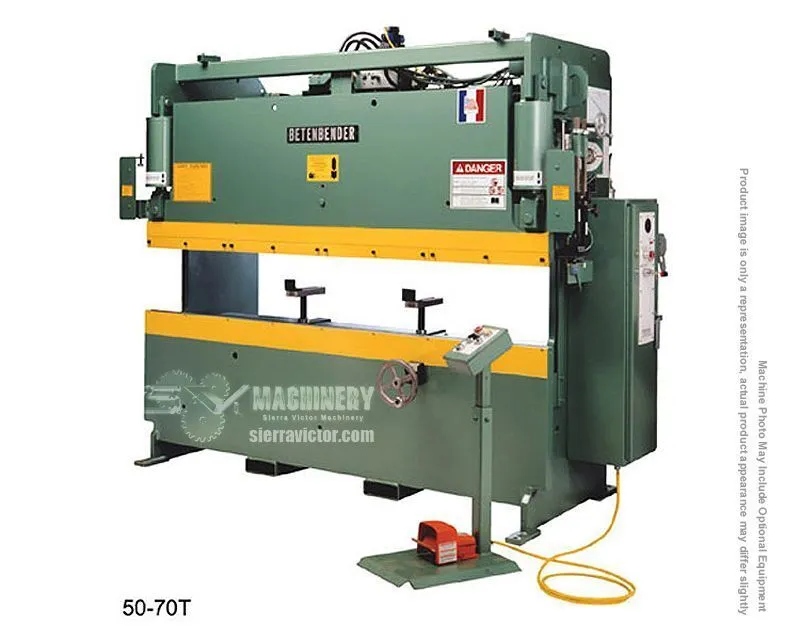

NEW BETENBENDER 4-70

** FREE SHIPPING TO COMMERCIAL ADDRESS THAT CAN OFFLOAD**
SHIPPING IS TO LOWER 48 STATES ONLY. OTHER AREAS PLEASE EMAIL FOR FREIGHT QUOTES.
BETENBENDER’S 4-70 press brake's direct acting hydraulic cylinders are one piece, double acting with self-aligning, hardened ball sockets. The electrical systems meet NFPA 79 standards. All machines have disconnect switches, magnetic starters, 110/120v controls, 208-230/460v 3 phase, others optional. Our American made motors are rated for continuous duty, open drip.

**ESTIMATED WEIGHTS. The weight of your machine may vary from the estimated weight listed here.
Weights may vary according to options included.
> For specs on larger machines please call or email us and we will provide those for you.
> All dimensions are in inches unless otherwise noted. (To convert to centimeters multiply by 2.54)
> Engineering data and dimensions are subject to change without notice due to continuing product development.
> Foundation plans are available upon request.
> Die Blocks are not furnished.
> To convert Horsepower to KW, multiply by 0.746

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items:
Factory Start Up by Base Service Technician ...... $1,250.00 per day plus expenses
*24" Support Arms "Slide" Type W/T-Slots ........................ $1,200.00 pair
*Keylock Switch ...................................................................... $300.00
*Light Curtain .......................................................................... $7,500.00
Manual Front Reading Backgauge (24”) with Mechanical Readout .... $CALL
*One Shot Lubrication .......................................................... $1,100.00
*Operator Station Palm Control .......................................... $1,900.00
*Variable Tonnage Control .................................................. $1,550.00
*Work Light ............................................................................. $450.00
208v Single Phase ............................... $CALL
Additional Foot Pedal with Keylock .................................... $CALL
Air Lift (Recommended for 4/Way Dies ............................. $CALL
Angle Brackets (Plates) for Bottom (4"x4") 18" Shorter than Bed ....... $300.00 per foot
Angle Brackets (Plates) for Top (4"x4") 18" Shorter than Bed ......... $300.00 per foot
Automatic Lubrication ........................................................... $3,100.00 each
Bed Machining Angle Brackets ........................................... $1,900.00
Bolt/Shim Kit for Leveling ............................................... $450.00
CNC Backgauge .................................. $CALL
CNC Ram Stop .................................... $CALL
Crating Charge (Not an Export Crate) Still Requires Tarping ..... P.O.R.
Die Riser ........................................................................ P.O.R.
Die Rollover Bars (Recommended for 4/Way Dies) ..... $250.00
Disappearing Stops (Support Arms) ............................. $200.00 each
Dove Tails ............................................ $CALL
Dual Calibration ................................. $CALL
Extended Support Arms (each) ....................................... $60.00 per foot
Extra Length on Backgauge ............................................. $CALL
Extra Foot Pedal w/Keylock Switch ................................. $1,000.00
Increase Stroke Length .................................................... P.O.R.
Increase Throat Gap or Increase Open Height
50, 70, 95 Ton .............. $1,000.00 per inch
120, 160, 190 Ton ....... $1,800.00 per inch
240 Ton ......................... $2,000.00 per inch
Micrometer Precision Gauge Unit (2 Required) ....... $CALL
Oil Cooler (Kidney Loop System) .................................... $7,500.00
Palm Buttons/Foot Control System (Hand buttons to preset height, stop and hold, foot to continue to shut height) ............$3,100.00
Power Front Reading Backgauge with 5 Station NC “GO-TO” Positioner on Pendant ... $CALL
Power Ram Adjustment with 5 Station NC “GO-TO” Positioner on Pendant .... $CALL
Ram Machining ......................................... $1,900.00
Ram Stop Control (1/4" above die) .............. P.O.R.
Special Application Tooling .............. $CALL
Special Paint Colors .......................... P.O.R.
T-Slots .................................................. $300.00 per foot
BACKGAUGES AND RAM CONTROL:
*Manual Front Reading Backgauge (24") w/Mechanical Readout ..... $3,500.00
Power Front Reading Backgauge w/5 Station NC "Go To" Positioner on Pendant ...... $5,500.00
Power Ram Adjustment w/5 Station NC "Go To" Positioner on Pendant ....... $2,500.00
Extra Length on Backgauge ............................. $1,000.00
CNC Backgauge ................................................. P.O.R.

Rigging, Lagging, Leveling and Electrical Hook Up is Customers Responsibility
ASK ABOUT OPTIONS NOT LISTED.
ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE: DIE RISERS NOT FURNISHED
*RECOMMENDED OPTIONS
