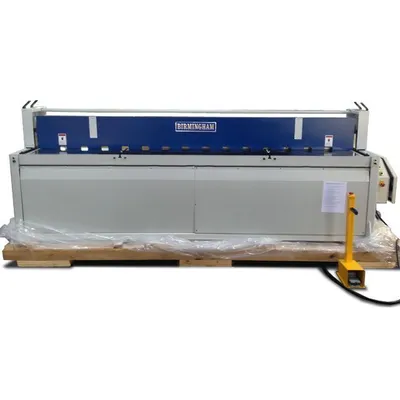

NEW BIRMINGHAM H-1035

Florida, United States
3,961Listings|11Followers
Overview
Power Squaring Shears (Gauge)

Discover the new BIRMINGHAM H-1035 Hydraulic Shear, featuring a 10 ft blade and 10 ga. capacity. With 25-35 SPM, 8.2T hold-down pressure, and adjustable rake angle, this machine offers precision and efficiency for your shearing needs.

Specs
Max Sheet Size (ft)
10'
3,048 mm
Length of Blade
10'
3 m
Shearing Capacity - Mild Steel
10 gauge
10 gauge
Shearing Capacity - Stainless Steel
13 gauge
13 gauge
Strokes Per Minute (S.P.M.)
25-35
25-35
Hold-Downs Number
16
16
Hold-Downs Pressure (Tons)
8.2 T
7,438.9 kg
Oil Tank Capacity
40 gal
151.4 L
Back Gauge
24"
609.6 mm
Front Support
40"
1,016 mm
Motor Power
10 hp
7.5 kW
Top Blade Rake Adjustment
Hydraulic Adjustment Rake Angle
Hydraulic Adjustment Rake Angle
Top Blade Rake Angle
1/2 - 2°
1/2 - 2°
Dimensions
158" x 50" x 65"
158" x 50" x 65"
Weight
9,800 lbs.
9,800 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
