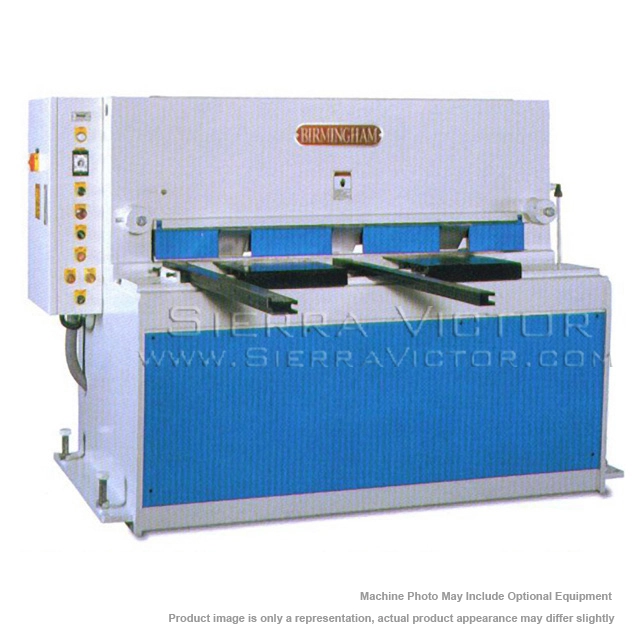

NEW BIRMINGHAM H-0535

Florida, United States
3,961Listings|11Followers
Overview
Power Squaring Shears (Gauge)

Well balanced and sturdy welded machine frame provides constant stability and rigidity. The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump. Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the work piece is securely clamped at the moment of cutting.

Specs
Max Sheet Size (ft)
5'
1,524 mm
Length of Blade
5'
1.5 m
Shearing Capacity - Mild Steel
10 gauge
10 gauge
Shearing Capacity - Stainless Steel
13 gauge
13 gauge
Hold-Downs Number
9
9
Hold-Downs Pressure (Tons)
3.5 T
3,175.2 kg
Oil Tank Capacity
30 gal
113.6 L
Back Gauge
24"
609.6 mm
Front Support
40"
1,016 mm
Motor Power
7.5 hp
5.6 kW
Top Blade Rake Adjustment
Hydraulic Adjustment Rake Angle
Hydraulic Adjustment Rake Angle
Top Blade Rake Angle
1/2 - 2°
1/2 - 2°
Dimensions
103" x 48" x 63"
103" x 48" x 63"
Weight
5,000 lbs.
5,000 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
