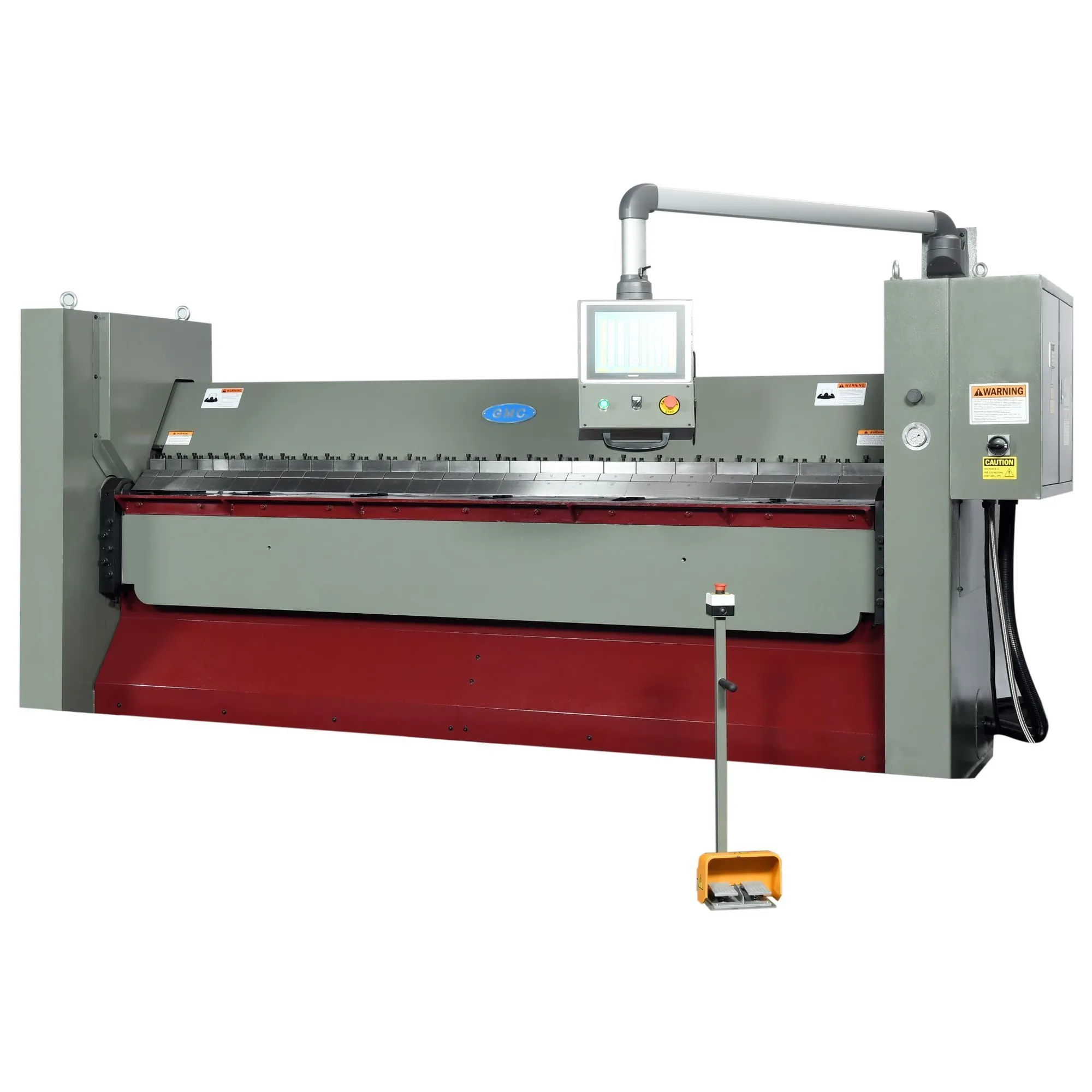

GMC HBB-1010NC NC Hydraulic Box and Pan Brake has a 10 foot max bending length and 10 gauge mild steel capacity. 48 inch NC table back gauge with fingers, Max. 16 bends per program, Up to 100 Program Storage. All steel construction for maximum rigidity.
| Capacity (ga) Mild Steel | 10 gauge | 10 gauge |
| Capacity (ga) Stainless | 14 gauge | 14 gauge |
| Capacity (in.) Aluminum | 0.25" | 6.35 mm |
| Bending Length (ft) | 10' | 3,048 mm |
| Hemming Max Thickness | 22 gauge | 22 gauge |
| Beam Adjustment | 1" | 25.4 mm |
| Min Reverse Bend | 1" | 25.4 mm |
| Bending Angle/Degree | 135 degree (programmable) | 135 degree (programmable) |
| Finger Sizes | 3, 4, 5, 6 in. | 3, 4, 5, 6 in. |
| Max. Box Depth | 6.02" | 152.91 mm |
| Beam Opening | 3" | 76.2 mm |
| Oil Tank | 32 gal | 121.1 L |
| Hydraulic Oil | Shell #68 or equivalent | Shell #68 or equivalent |
| Main Motor | 10 HP | 10 HP |
| Power Requirement | 220V/208V, 3ph (35amps) | 220V/208V, 3ph (35amps) |
| Machine Weight | 11,550 lb | 5,239 kg |
| Shipping Weight | 11,850 lb | 5,375.1 kg |
| Overall Dimensions | 175 x 93 x 76 in. | 175 x 93 x 76 in. |
| Shipping Dimensions | 163 x 85 x 78 in. | 163 x 85 x 78 in. |
| Dimensions | 175 x 93 x 76 in. | 175 x 93 x 76 in. |
| Weight | 11850 | 11850 |
Mild Steel (hot roll) 60K PSI
Stainless Steel 85 K PSI
Soft aluminum 28K PSI
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
One piece 10 ft straight finger -Call for pricing
One day on-site training - Call for pricing
