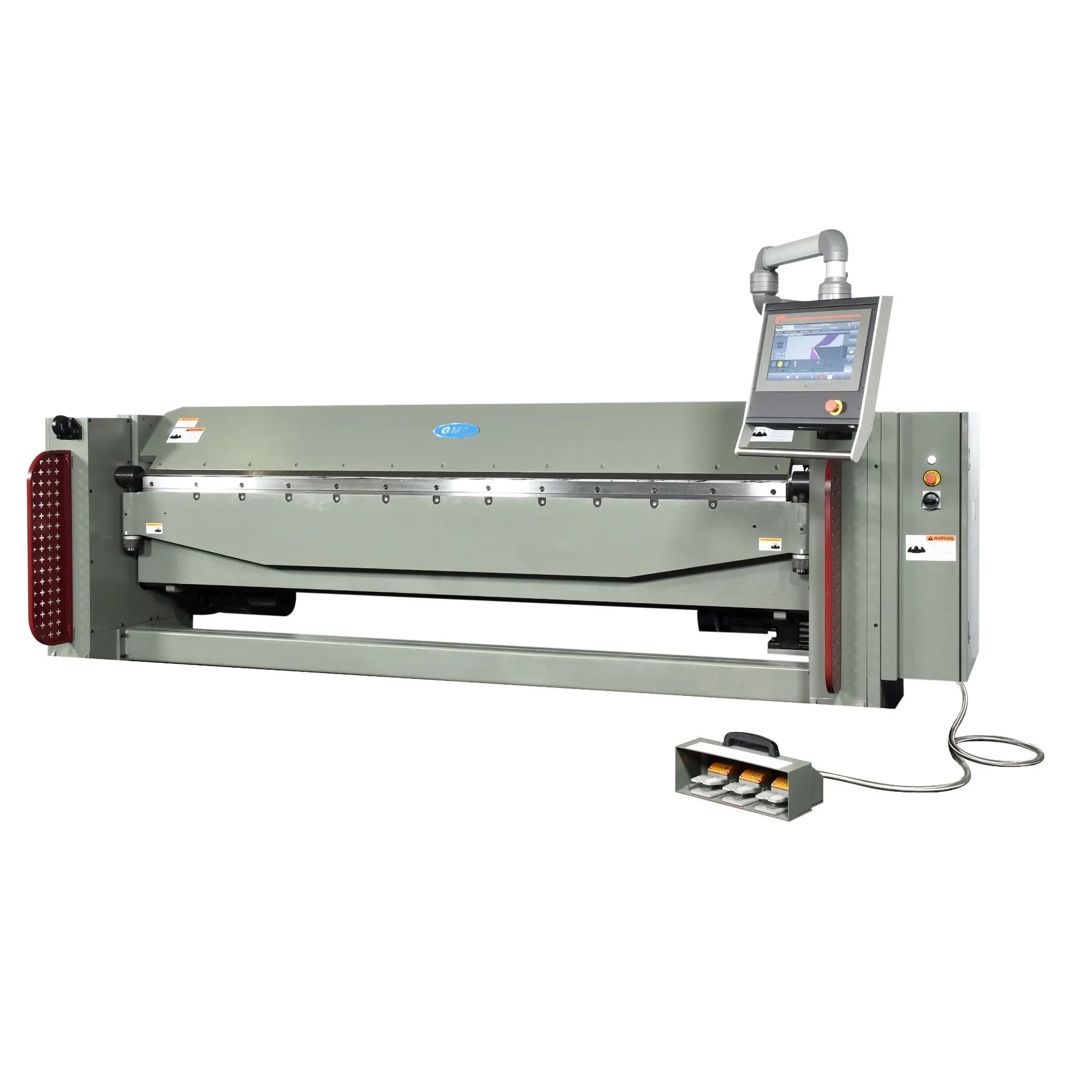

GMC EFM-1014CNC CNC Power Folder has 10 foot bending length capacity and 14 Gauge mild steel bending capacity. Designed in US and Taiwan quality Machine.ESA CNC control, made in Italy, Max. 99 bends per program, Up to 2000 Programs Storage, Profiles library with graphics.48 inch CNC back gauge with table and fingers.All steel construction for maximum rigidity.
| Max Sheet Length | 120" | 3,048 mm |
| Max Sheet Length | 10' | 3 m |
| Mild Sheet | 0.0747" | 1.8974 mm |
| Mild Sheet | 14 gauge | 14 gauge |
| Stainless | 0.0478" | 1.2141 mm |
| Stainless | 18 gauge | 18 gauge |
| Close Hemming Capacity | 26 gauge | 26 gauge |
| Open Hemming Capacity | 24 gauge | 24 gauge |
| Bend Angle Degree | 0-135 degree | 0-135 degree |
| Large Beam Opening/Clamping Opening | 4.875" | 123.82 mm |
| Min. Reverse Bend | 0.5" | 12.7 mm |
| Max. Table Back Gauge Distance | 48.375" | 1,228.7 mm |
| Min. Table Back Gauge Distance | 0.5" | 12.7 mm |
| Back Gauge Repeatability | 0.0039" | 0.0991 mm |
| Back Gauge Table height | 35.75" | 908.05 mm |
| Main motor | 4 hp | 3 kW |
| Voltage/Phase | 220v / 3-phase | 220v / 3-phase |
| Servo Motor for Backgauge | 2 hp | 1.5 kW |
| Clamping Motor | 1.5 hp | 1.1 kW |
| Amperage Draw | 35 A | 35 A |
| Shipping Dimensions | 174 x 80 x 71 in. | 174 x 80 x 71 in. |
| Shipping Weight | 10,150 lb | 4,604 kg |
| Dimensions | 168 x 79 x 67 in. | 168 x 79 x 67 in. |
| Weight | 9,850 lbs. | 9,850 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
* 1/2" thick insert bar for ½" min. reverse bend,capacity mild steel 28-22G…$1,950.00
* One day on-site training ……………………………………………………….$4,995.00
* Digital Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase …. $4,250.00
(must be purchased and installed by GMC or warranty will be voided)
* This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
