New | in-Stock

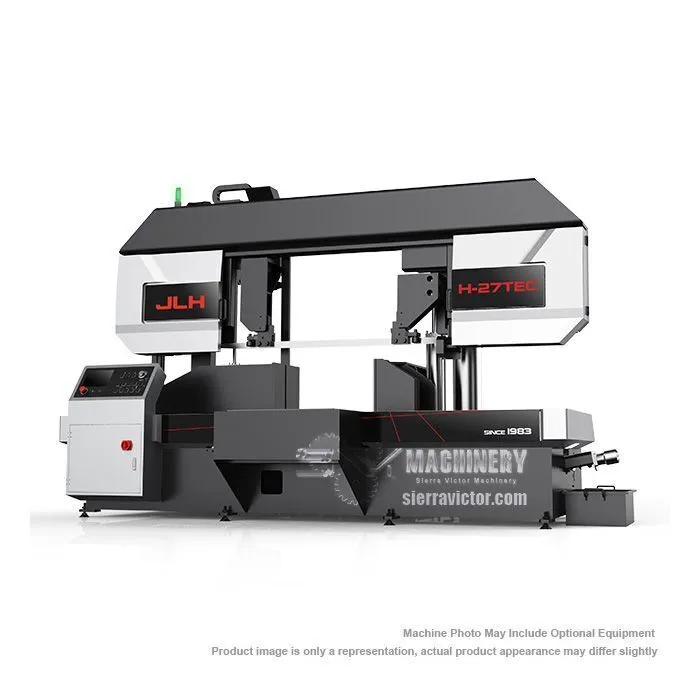

NEW JLH H-27TEC

Florida, United States
3,886Listings|10Followers
Overview
Horizontal Band Saws

JLH Saws H-27TEC is a 27 inch Semi-Automatic Bandsaw.Drive motor is inverter controlled. JLH Saws Control provides latest in PLC based control technology.

Specs
Cutting Capacity Round
1.6 - 27.6 in.
1.6 - 27.6 in.
Cutting Capacity Square
1.6 x 1.6 in. - 31.5 x 27.6 in.
1.6 x 1.6 in. - 31.5 x 27.6 in.
Blade Size
318.9 x 2.1 x 0.06 in.
318.9 x 2.1 x 0.06 in.
Blade Speed
65.6 - 262.5 fpm
65.6 - 262.5 fpm
Blade Motor
14.7 HP
14.7 HP
Voltage - Imax (A) 480V/60Hz
17.3
17.3
Voltage - Imax (A) 220V/60Hz
38
38
Hydraulic Motor
2 HP
2 HP
Hydraulic Oil Tank Capacity
10.9 gal
41.3 L
Coolant Motor
0.54 HP
0.54 HP
Cutting Oil Tank Capacity
33 gal
124.9 L
Bed/Table Height
29.55"
750.57 mm
Dimensions
162 x 135.8 x 98.4 in.
162 x 135.8 x 98.4 in.
Weight
13,228 lbs.
13,228 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
