NEW JET GHB-1236

Florida, United States
Asking Price
USD $12,429.00
1 available
3,902Listings|10Followers
Overview
Bench Top Lathes

Introducing the JET GHB-1236, a new 12x36 in. geared head bench lathe with a sturdy stand and foot brake. Key specs: 2" spindle bore, 75-1400 rpm, and 230v motor. Ideal for precision work with its extensive range of threads and feeds. Perfect for your workshop!

Specs
Lathe Type
Geared Head
Geared Head
Swing Over Bed
12"
304.8 mm
Swing Over Cross Slide
7.5"
190.5 mm
Swing Through Gap
18"
457.2 mm
Length of Gap
8.75"
222.25 mm
Distance Between Centers
33"
838.2 mm
Spindle Bore
2"
50.8 mm
Spindle Mount
D1-4
D1-4
Width of Bed
7.12"
180.85 mm
Tailstock Spindle Travel
3.5"
88.9 mm
Taper in Tailstock Spindle
MT-3
MT-3
Cross Slide Travel
5.5"
139.7 mm
Compound Slide Travel
3"
76.2 mm
Carriage Travel
27-3/8 in.
27-3/8 in.
Spindle Taper w/Sleeve
MT5
MT5
Range of Spindle Speeds
75-1400 rpm
75-1400 rpm
Number of Spindle Speeds
9
9
Range of Metric Threads
0.4-7mm
0.4-7mm
Number of Metric Threads
32
32
Range of Inch Threads
4-60 in.
4-60 in.
Number of Inch Threads
36
36
Number of Longitudinal and Cross Feed Rates
48/36
48/36
Range of Longitudinal Feeds (IPR)
0.0019 - 0.0472
0.0019 - 0.0472
Range of Cross Feeds (IPR)
0.0014 - 0.0116
0.0014 - 0.0116
Follow Rest Capacity
0.31-2.16 in.
0.31-2.16 in.
Steady Rest Capacity
0.31-2.95 in.
0.31-2.95 in.
Maximum Tool Size
3/4 x 3/4 in.
3/4 x 3/4 in.
Motor
2 hp
1.5 kW
Phase
1
1
Voltage
230v
230v
Prewired
230v
230v
Dimensions
66-1/64 x 29-1/2 x 59-13/16 in. (w/stand)
66-1/64 x 29-1/2 x 59-13/16 in. (w/stand)
Weight
1,210 lbs.
1,210 lbs.

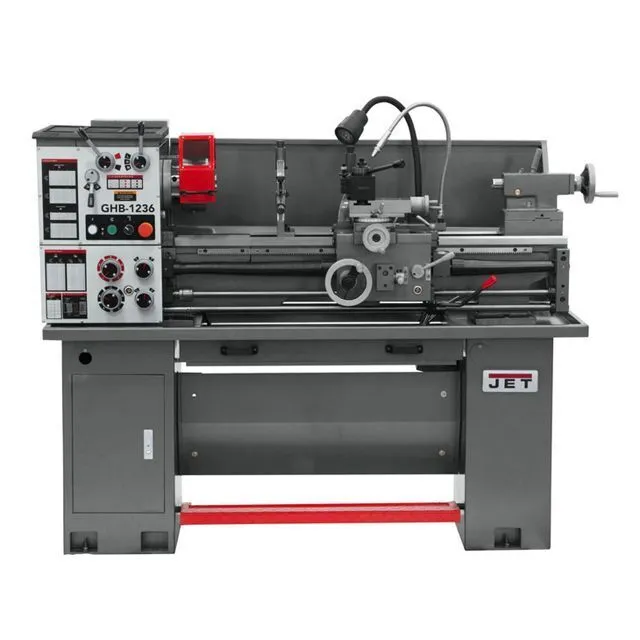

*Lathe shown with optional stand

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
