New | in-Stock

NEW JET GH-1440B

Florida, United States
Asking Price
USD $15,476.00
1 available
3,902Listings|10Followers
Overview
Bench Top Lathes

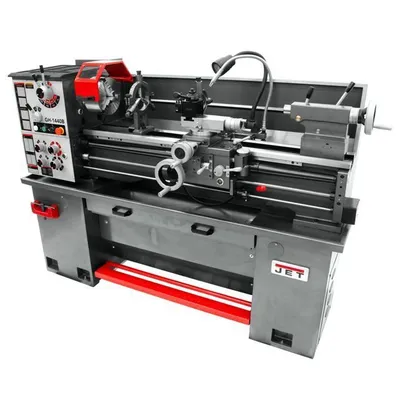

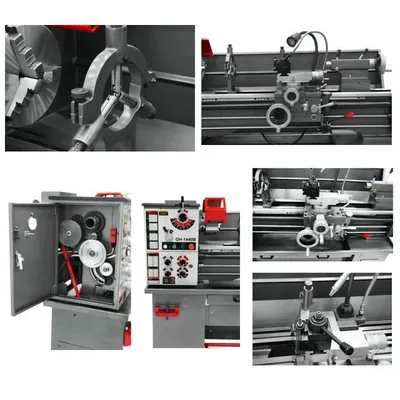

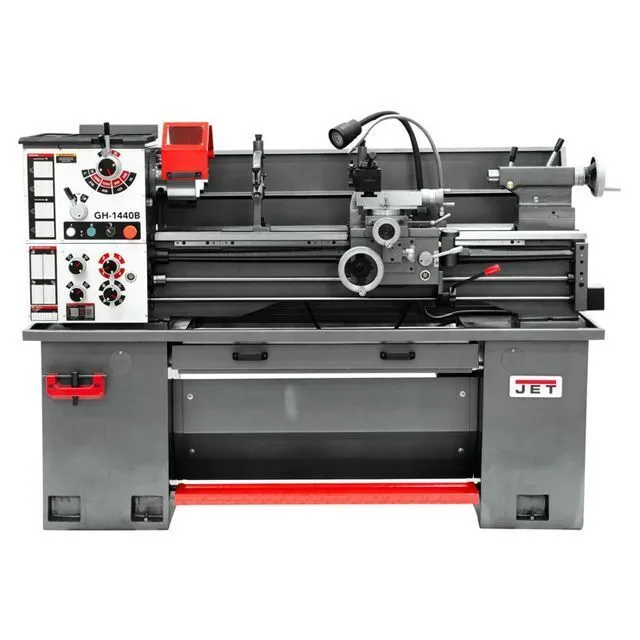

Explore precision with the new JET GH-1440B 14x40 in. Geared Head Bench Lathe, equipped with a sturdy stand and foot brake. Featuring a 2" spindle bore, 2 hp motor, and a range of 70-1900 spindle speeds, it's designed for versatile machining tasks.

Specs
Lathe Type
Geared Head
Geared Head
Swing Over Bed
14"
355.6 mm
Swing Over Cross Slide
8"
203.2 mm
Swing Through Gap
20"
508 mm
Length of Gap
8"
203.2 mm
Distance Between Centers
36.875"
936.62 mm
Spindle Bore
2"
50.8 mm
Spindle Mount
D1-5
D1-5
Width of Bed
7.32"
185.93 mm
Tailstock Spindle Travel
4"
101.6 mm
Taper in Tailstock Spindle
MT4
MT4
Cross Slide Travel
7"
177.8 mm
Compound Slide Travel
3.5"
88.9 mm
Carriage Travel
37-2/5 in.
37-2/5 in.
Spindle Taper w/Sleeve
MT6
MT6
Range of Spindle Speeds
70-1900
70-1900
Number of Spindle Speeds
8
8
Range of Metric Threads
0.4-7
0.4-7
Number of Metric Threads
26
26
Range of Inch Threads
4-56
4-56
Number of Inch Threads
34
34
Number of Longitudinal and Cross Feed Rates
32/32
32/32
Range of Longitudinal Feeds (IPR)
0.002 -0.0548
0.002 -0.0548
Range of Cross Feeds (IPR)
0.007 -0.0187
0.007 -0.0187
Follow Rest Capacity
0.31-2.16 in.
0.31-2.16 in.
Steady Rest Capacity
0.31-2.95 in.
0.31-2.95 in.
Maximum Tool Size
4/5 x 4/5 in.
4/5 x 4/5 in.
Motor
2 hp
1.5 kW
Phase
1
1
Voltage
230v
230v
Prewired
230v
230v
Dimensions
76-13/32 x 29-29/32 x 59-13/16 in. (w/stand)
76-13/32 x 29-29/32 x 59-13/16 in. (w/stand)
Weight
1,753 lbs.
1,753 lbs.

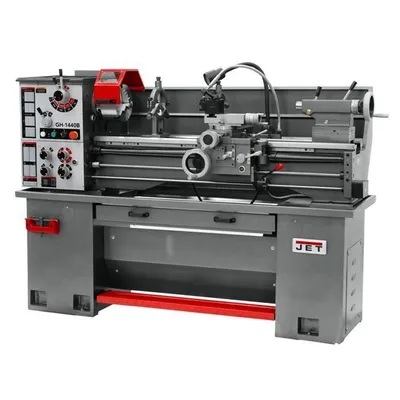

*Lathe shown with optional stand

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
