OUT OF STOCK - CALL FOR AVAILABILITY

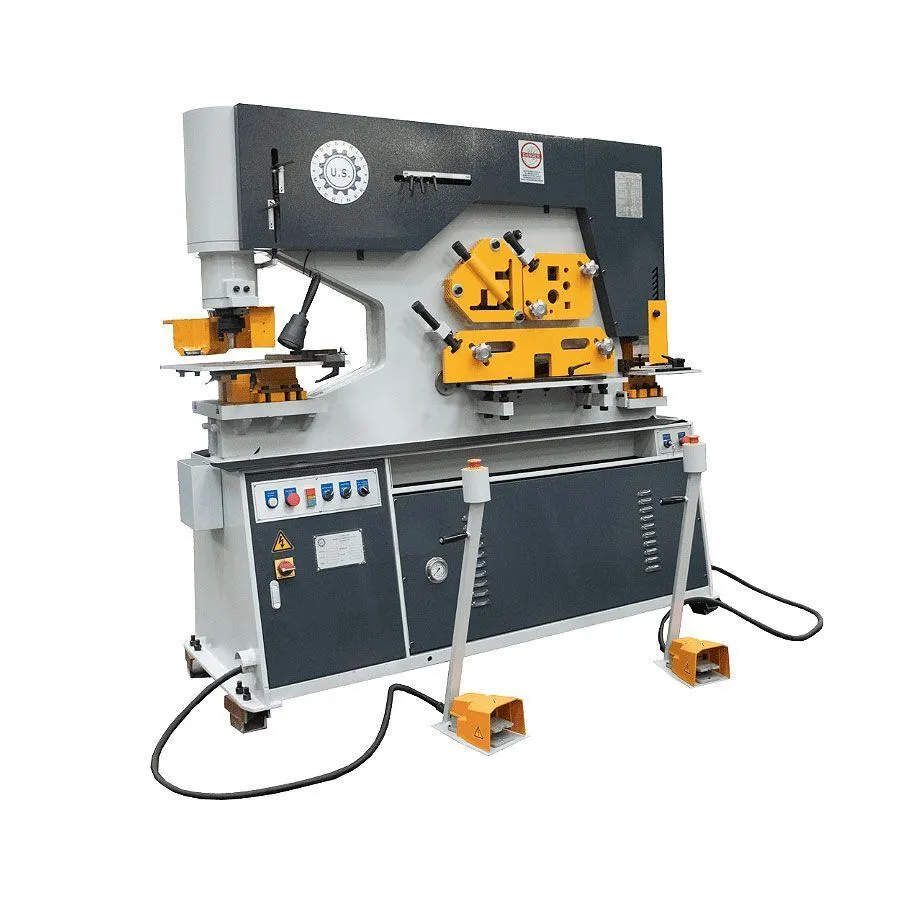

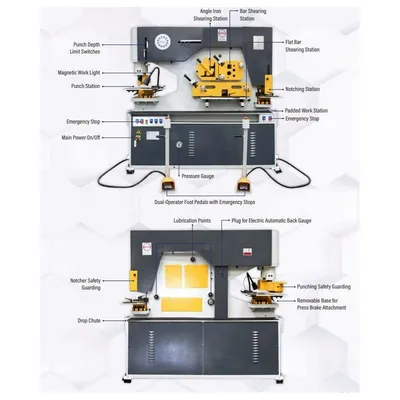

U.S. INDUSTRIAL USHI-125T-DO Hydraulic Ironworker w/16" Standard Punch Throat has a punch tonnage of 125 tons. Five workstations: punch, plate shear, angle shear, rod shear and notcher. This machine also comes with a press brake attachment. Has a 15 HP motor, 3-phase operation with 220V or 440V.
| Punch Tonnage | 125 T | 113,398.2 kg |
| Punching Thickness | 1" | 25.4 mm |
| Punching Diameter | 1-1/2 in. | 1-1/2 in. |
| Flat Bar Shear | Max. Thickness 14 W x 1 in. Thick / Max. Length 23.5 W x 5/8 in. Thick | Max. Thickness 14 W x 1 in. Thick / Max. Length 23.5 W x 5/8 in. Thick |
| Flat Bar Shear Length | 23.5" | 596.9 mm |
| Angle Shear 90° | 6 x 6 x 5/8 in. | 6 x 6 x 5/8 in. |
| Angle Shear 45° | 3 x 3 x 1/4 in. | 3 x 3 x 1/4 in. |
| Round Bar Shear | 2-3/8 in. | 2-3/8 in. |
| Square Bar Shear | 2-1/8 in. | 2-1/8 in. |
| Notcher | Thickness 1/2 x Width 2-1/4 x Depth 4 in. | Thickness 1/2 x Width 2-1/4 x Depth 4 in. |
| Throat Depth | 16" | 406.4 mm |
| Stroke Length | 0 - 3 1/8 in. | 0 - 3 1/8 in. |
| Motor | 15 HP | 15 HP |
| Electrics | 220v or 440v, 3-Phase (Specify) | 220v or 440v, 3-Phase (Specify) |
| Oil Capacity/Reservoir | 33 gal | 124.9 L |
| Dimensions | 92 x 37 x 82 in. | 92 x 37 x 82 in. |
| Weight | 10,560 lbs | 10,560 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
UPIW1500 - Round Punch and Die Set for 66 and 90 Ton Models
UPIW1501 - Round Punch and Die Set for 125 and 155 Ton Models
UPIW1502 - Pipe Notcher Housing Assembly
UPIW1503 - 1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1504 - 3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1505 - 1" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1506 - 1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1507 - 1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1508 - 2" Ironworker Pipe Notching Die for Schedule 40 Pipe
