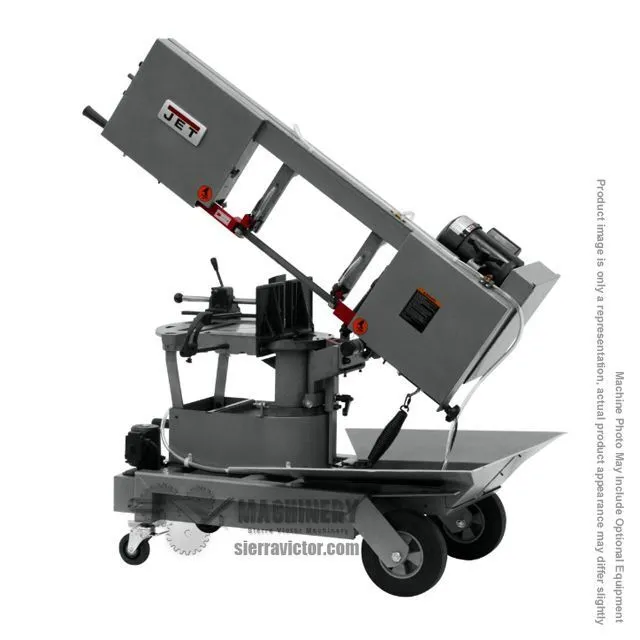

The JET HVBS-10-DMWC Dual-Mitering band saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.
| Cutting Capacity | 13 x 10 in. (Vertical) | 13 x 10 in. (Vertical) |
| Round at 90° | 10 in. | 10 in. |
| Round at 45° | 6.5 in. | 6.5 in. |
| Square at 90° | 8 in. | 8 in. |
| Square at 45° | 5.5 in. | 5.5 in. |
| Rectangle at 90° | 8 x 9 in. | 8 x 9 in. |
| Rectangle at 45° | 8 x 5.5 in. | 8 x 5.5 in. |
| Round Solid at 90° | 10 in. | 10 in. |
| Round Solid at 45° | 6.5 in. | 6.5 in. |
| Square Solid at 90° | 8 in. | 8 in. |
| Square Solid at 45° | 5.5 in. | 5.5 in. |
| Rectangular Solid at 90° | 8 x 9 in. | 8 x 9 in. |
| Rectangular Solid at 45° | 8 x 5.5 in. | 8 x 5.5 in. |
| Blade Size | 1 x 0.035 x 120 in. | 1 x 0.035 x 120 in. |
| Blade Wheel Diameter | 11.72" | 297.69 mm |
| Blade Speed | 64, 132, 247 sfpm | 64, 132, 247 sfpm |
| Motor | 1 HP | 1 HP |
| Power | 115v, 1-Phase | 115v, 1-Phase |
| Table Height | 30.41" | 772.41 mm |
| Coolant Pump | 1/8 HP, 115v, Single Phase | 1/8 HP, 115v, Single Phase |
| Max. Vise Opening | 10" | 254 mm |
| Head Movement | +/- 45 | +/- 45 |
| Dimensions | 72 x 34.5 x 46 in. | 72 x 34.5 x 46 in. |
| Weight | 528 lbs. | 528 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
