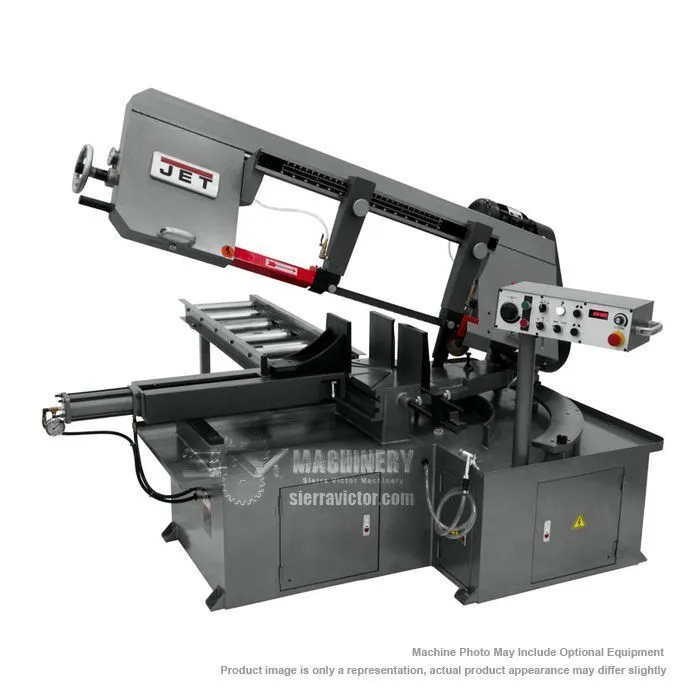

The JET Elite MBS-1323EVS-H Dual Mitering Horizontal bandsaw's unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds.
| Round at 90° | 13" | 330.2 mm |
| Square at 90° | 13 in. | 13 in. |
| Rectangle at 90° | 12 x 23-1/2 in. | 12 x 23-1/2 in. |
| Round at 45° | 13" | 330.2 mm |
| Square at 45° | 13 in. | 13 in. |
| Rectangle at 45° | 8 x 16 in. | 8 x 16 in. |
| Round at 60° | 11" | 279.4 mm |
| Square at 60° | 11 in. | 11 in. |
| Rectangle at 60° | 7 x 12 in. | 7 x 12 in. |
| Solid Round at 90° | 13" | 330.2 mm |
| Solid Square at 90° | 13 in. | 13 in. |
| Solid Rectangele at 90° | 12 x 23-1/2 in. | 12 x 23-1/2 in. |
| Solid Round at 45° | 13" | 330.2 mm |
| Solid Square at 45° | 13 in. | 13 in. |
| Solid Rectangele at 45° | 8 x 16 in. | 8 x 16 in. |
| Solid Round at 60° | 11" | 279.4 mm |
| Solid Square at 60° | 11 in. | 11 in. |
| Solid Rectangele at 60° | 7 x 12 in. | 7 x 12 in. |
| Blade Size | 1-1/4 x 0.043 x 172 in. | 1-1/4 x 0.043 x 172 in. |
| Blade Wheel Diameter | 16" | 406.4 mm |
| Blade Speed | 50 - 297 sfpm (Electronic Variable Speed) | 50 - 297 sfpm (Electronic Variable Speed) |
| Blade Motor | 3 HP | 3 HP |
| Power | 230v, 3-Phase | 230v, 3-Phase |
| Prewired | 230v | 230v |
| Head Movement | 45°R , 60°L | 45°R , 60°L |
| Bed/Table Height | 27.75" | 704.85 mm |
| Vise Opening | 26" | 660.4 mm |
| Dimensions | 88 x 55 x 51 in. | 88 x 55 x 51 in. |
| Weight | 1,826 lbs. | 1,826 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
Optional items - Call for price:
JT9-413413 - Roller Table for MBS-1232EVS-H Saw: $1,329.00
