| Lathe Type | Engine | Engine |
| Swing Over Bed | 40" | 1,016 mm |
| Distance Between Centers | 196" | 4,978.4 mm |
| Spindle Bore | 6.0625" | 153.99 mm |
| Spindle Nose | D1-15 | D1-15 |
| Motor | 20 hp | 14.9 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Dimensions | 276 x 73 x 77 in. | 276 x 73 x 77 in. |
| Weight | 18,800 lbs. | 18,800 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

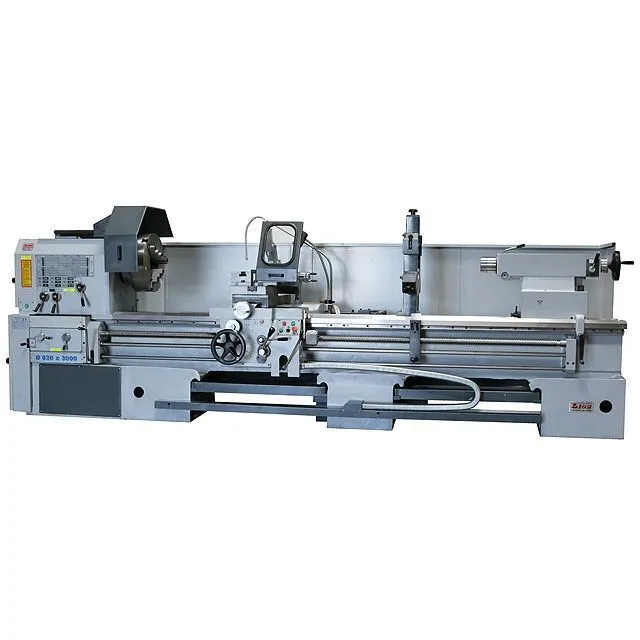

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional items - Call for price:
Digital Readout
