OUT OF STOCK - CALL FOR AVAILABILITY

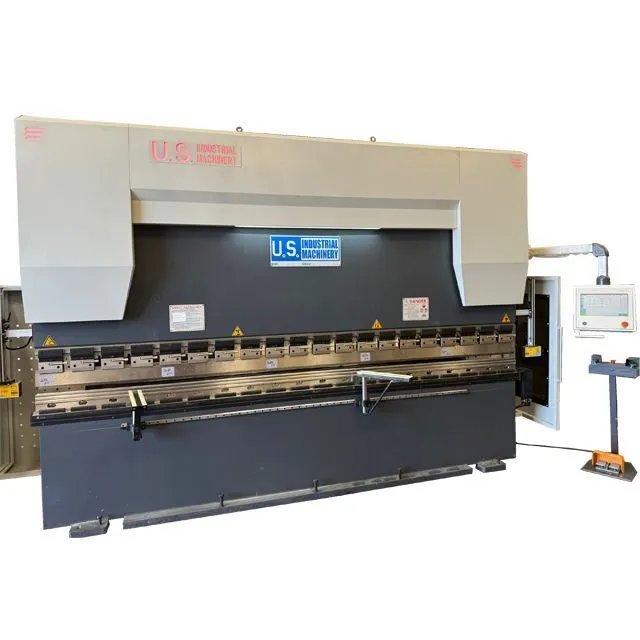

The New U.S. INDUSTRIAL USY220-13 CNC Hydraulic Press Brake has a 220 Ton working pressure and 13 ft Length of working table.Setting for ram speed slowdown and return position CNC controlled All Steel Construction.
| Pressure/Tonnage | 220 T | 199.581 t |
| # Axis | 3 | 3 |
| Throat Depth | 15.74" | 399.8 mm |
| Table Length | 157.4" | 3,998 mm |
| Pressing Speed | Dependent on Tool Load | Dependent on Tool Load |
| Rapid Ram Travel Speed | 6.3 in/sec. | 159.8 mm/sec. |
| Rapid Ram Retreat Speed | 4.7 in/sec. | 119.9 mm/sec. |
| Distance Between Housings | 129.9" | 3,299.5 mm |
| Backgauge Travel | 24" | 609.6 mm |
| Main Motor | 20 HP, 220 or 440 Volts, 3 ph (specify) | 20 HP, 220 or 440 Volts, 3 ph (specify) |
| Ram travel | 7.87" | 199.9 mm |
| Open Height | 20.86" | 529.84 mm |
| Control | CNC | CNC |
| Dimensions | 199L x 78W x 111H in. | 199L x 78W x 111H in. |
| Weight | 29762 lbs. | 29762 lbs. |
*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
*Training in our Memphis, TN Facility
*Training at customer site, less than 300 miles from Memphis
*Training at customer site, more than 300 miles from Memphis: (If outside continental USA, please call for quote.)
