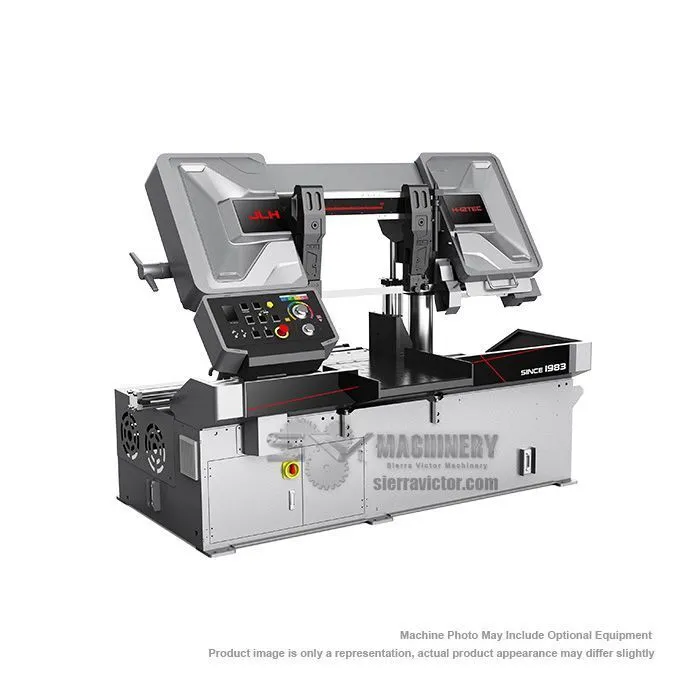

NEW JLH H-12TEC

Florida, United States
3,831Listings|9Followers
Overview
Horizontal Band Saws

JLH Saws H-12TEC is a 12 inch Semi-Automatic Bandsaw. Drive motor is inverter controlled.JLH Saws Control provides latest in PLC based control technology.

Specs
Cutting Capacity Round
12.2 in.
12.2 in.
Cutting Capacity Square
12.2 x 12.2 in.
12.2 x 12.2 in.
Cutting Capacity Bundle
12.2 x 7.5 in.
12.2 x 7.5 in.
Blade Size
162.0 x 1.3 x 0.042 in.
162.0 x 1.3 x 0.042 in.
Blade Speed
32.8 - 328 sfpm
32.8 - 328 sfpm
Blade Motor
6.7 HP
6.7 HP
Power
220Vv, 3 Phase 60Hz
220Vv, 3 Phase 60Hz
Hydraulic Motor
1.5 HP
1.5 HP
Hydraulic Oil Tank Capacity
15.9 gal
60.2 L
Coolant Motor
0.12 HP
0.12 HP
Coolant Tank Capacity
23.8 gal
90.1 L
Bed/Table Height
26.22"
665.99 mm
Drive and Idle Wheel Size
φ 17.7 in.
φ 17.7 in.
Dimensions
89 x 91 x 61 in.
89 x 91 x 61 in.
Weight
3,748 lbs.
3,748 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor

Equipped With

Optional Items - Call for price:
* 6’6” (2M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* 9’10” (3M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* Powered Roller Tables
* Transformer for 480V, 3 Phase
