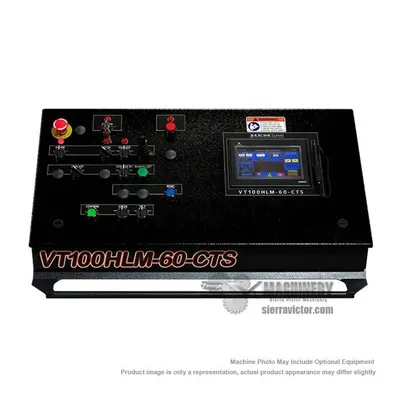

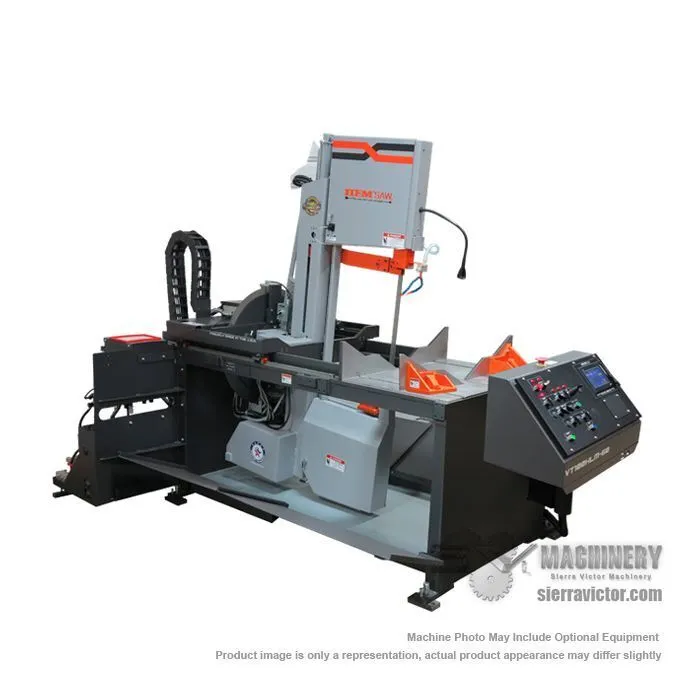

The VT100HLM-60-CTS miters up to 60ᵒ in both directions. Round Cutting capacity is 18 inches. The control console is located in a swing-away console at the front of the saw. A touch screen is used to operate the various functions on the saw. Optional vises and other features are available. 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Semi-Automatic | Semi-Automatic |
| Capacity - Round | 0-18 in. | 0-18 in. |
| Capacity - Square | 0-18 in. | 0-18 in. |
| Capacity - Rectangular | 0-18 W x 0-20.75 H in. | 0-18 W x 0-20.75 H in. |
| Blade Size | 15' 6" L x 1.25" H x .042" | 15' 6" L x 1.25" H x .042" |
| Motor | 5 HP | 5 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Power Source | Hydraulic | Hydraulic |
| Cantilever | Removable | Removable |
| Bundle Cut | Yes | Yes |
| Weight | 3000 | 3000 |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Swing-Away Top Clamp - Main Vise
Top Clamp - Reduced Capacity Main Vise
Vise - 2nd Main
Material List w/ Larger 8" Touch Screen
Passive "Cut Watcher" System
Power Raised Lift Up Rollers
12" H Wear Plates - Non Mitered
Laser Light System
Pedestal Mounted Control Console
Spray Mist Lubrication
5' Roller Load Table
10' Idle Roller Load Table
5' Roller Discharge Table
10' Roller Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
