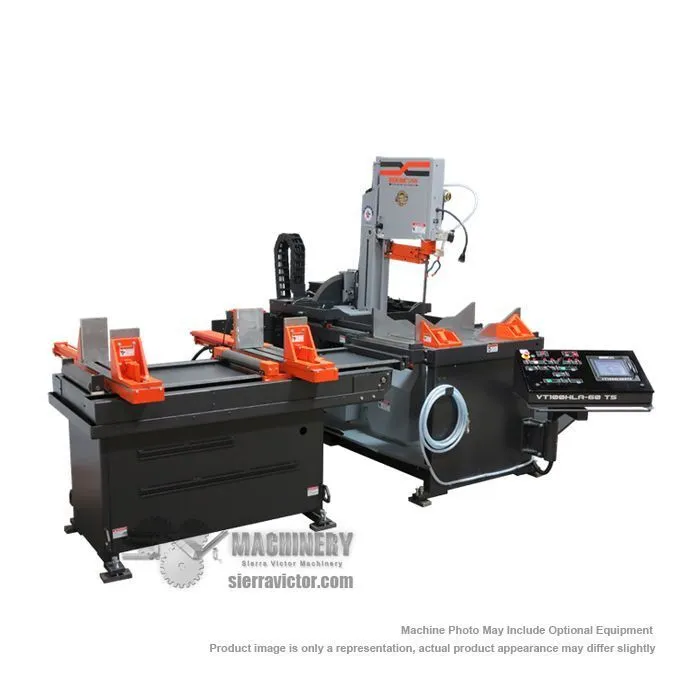

The VT100HLA-60-CTS is a fully automatic and programmable saw that will miter up to 60ᵒ in both directions Manual, Semi-Automatic, and Fully Automatic modes will save jobs for future using a touch screen control and the bar-feed indexes 48” per stroke with multiple indexes possible. The round cutting capacity is 18 inches.220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Automatic | Automatic |
| Capacity - Round | 0-18 in. | 0-18 in. |
| Capacity - Square | 0-18 in. | 0-18 in. |
| Capacity - Rectangular | 0-18 W x 0-20.75 H in. | 0-18 W x 0-20.75 H in. |
| Blade Size | 15' 6" L x 1.25" H x .042" | 15' 6" L x 1.25" H x .042" |
| Motor | 5 HP | 5 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Power Source | Hydraulic | Hydraulic |
| Bar-feed | 0-48 in. (Stroke Hydraulic Motor - Multiple Index) | 0-48 in. (Stroke Hydraulic Motor - Multiple Index) |
| Cantilever | Removable | Removable |
| Bundle Cut | Yes | Yes |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
0-48" Stroke Servo Twin Ball-Screw Bar-Feed
Bar-Feed Filler Plates
Swing-Away Top Clamp - Main Vise
Top Clamp - Full Capacity Feed Vise
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Vise - 2nd Main
Vise - 3rd on Feed
Power Raised Lift Up Rollers
Laser Light System
Right to Left Feed Direction
Spray Mist Lubrication
Pedestal Mounted Control Console
Cold Weather Package
Hydraulic Tank Heater
5' Roller Discharge Table
10' Roller Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
