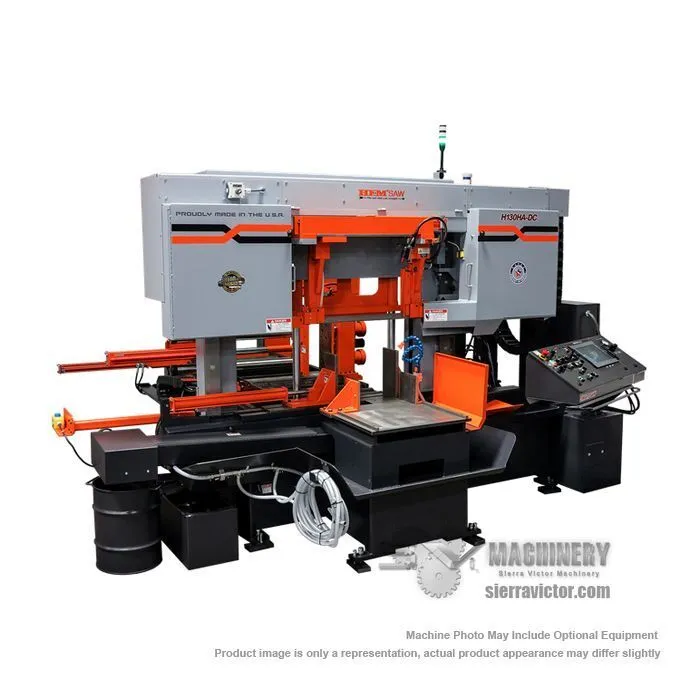

The H130A-DC uses a touch screen control and allows job programming and retains jobs for later use. The round cutting capacity is 20 inches.Standard is a 48” multiple–index servo twin ball-screw bar-feed. 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Capacity Round | 0-20 in. | 0-20 in. |
| Capacity Square | 0-20 in. | 0-20 in. |
| Capacity Rectangular | 0-20 W x 0-20 H in. | 0-20 W x 0-20 H in. |
| Saw Blade Size | 19' 0" L x 1.5" H x .050" | 19' 0" L x 1.5" H x .050" |
| Power Source | Hydraulic | Hydraulic |
| Motor | 10 HP | 10 HP |
| Power | 220v/3PH or 440v/3PH ** | 220v/3PH or 440v/3PH ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Bar-feed | 0-48 in. (Stroke Servo Twin Ball-Screw - Multiple Index) | 0-48 in. (Stroke Servo Twin Ball-Screw - Multiple Index) |
| Bundle Cut | No | No |
** Please Specify (This is Not a Dual Voltage Machine)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
