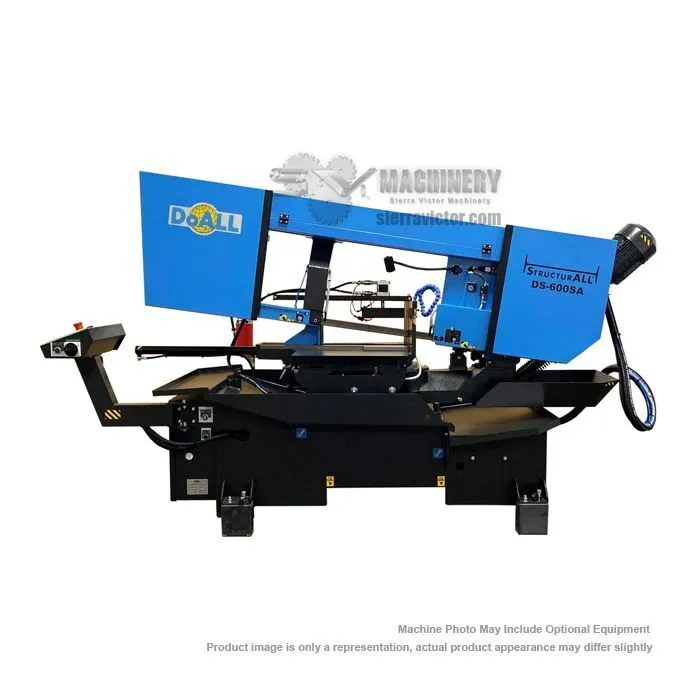

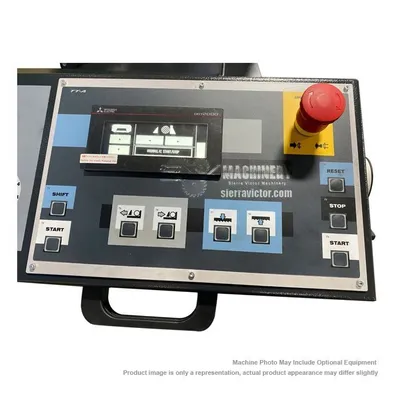

The DoALL DS-600SA 18 inch Dual Miter Semi-Automatic Band Saw has a Machine Capacity of 23.5" w x 18" h, Round Tube: 18". The Production Level is Intermediate/Medium.DS-600SA is semi-automatic, dual-miter metal-cutting band saw is designed for straight and angled cuts. Miter angle cuts are possible up to 60° left and right. Standard Features: Dual-Swivel Head To 60 Degrees (L&R), Digital Touch Screen Controls, Hydraulic Variable Vise Pressure and Mist Lubrication.
| Production Level | Intermediate/Medium | Intermediate/Medium |
| Cutting Capacity | 1-1/2 x 212 in. (W x L) | 1-1/2 x 212 in. (W x L) |
| Cutting Capacity Round | Tube: 18 in. (460mm) | Tube: 18 in. (460mm) |
| Blade Tension | Hydraulic | Hydraulic |
| Blade Speed | 65-328 fpm | 65-328 fpm |
| Blade Motor | 5 HP | 5 HP |
| Power | 460v-60Hz-3ph, Wye configuration | 460v-60Hz-3ph, Wye configuration |
| Amperage Draw | 9 Amps (FLA) | 9 Amps (FLA) |
| Hydraulic Motor | 1 HP | 1 HP |
| Hydraulic Oil Tank Capacity | 3 gal | 11.4 L |
| Coolant System | Flood coolant and Mist Lubricator | Flood coolant and Mist Lubricator |
| Coolant Motor | .07 HP | .07 HP |
| Coolant Tank Capacity | 5 gal | 18.9 L |
| Material Pass Height | 31.5" | 800.1 mm |
| Dimensions | 136 x 45 x 65 in. | 136 x 45 x 65 in. |
| Weight | 2,646 lbs. | 2,646 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* 6.6 ft (2000mm) Heavy-duty input conveyor for angle cutting with drip pan/gutter -
* 24.4" (620mm) cylinder width - 1142 lbs/ft or 1700kg/m capacity
* 6.6 ft (2000mm) Heavy-duty output conveyor for angle cutting with drip
pan/gutter - 24.4" (620mm) cylinder width - 1142 lbs/ft or 1700kg/m capacity
* 6.6 ft (2000mm) Input or output conveyor with drip pan/gutter - 24.4" (620mm)
cylinder width - 672 lbs/ft or 1000kg/m capacity
* 5 ft Medium-duty idler conveyor 24" between frames roller capacity 850 Ibs
* 10 ft Medium-duty idler conveyor 24" between frames roller capacity 850 Ibs
* Additional conveyor roller
* Single fixed vertical guide roller - (280mm) cylinder width - 7.9" (200mm) height -
* Mounts to the RDT
* Single adjustable horizontal conveyor roller 24.4" (620mm)
* Hydraulic vertical clamp for nesting
* Laser line generator
* 5 ft. Tape work stop (Mounts on Conveyor)
* 10 ft. Tape work stop (Mounts on Conveyor)
* 5 ft. Digital work stop (Mounts on Conveyor)
* 10 ft. Digital work stop (Mounts on Conveyor)
* Wear parts service kit - contains wear plates, guides, band brushes
* Magnetic wand chip remover
* Additional USB stick of manuals
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* Four (4) hours installation and operator training
