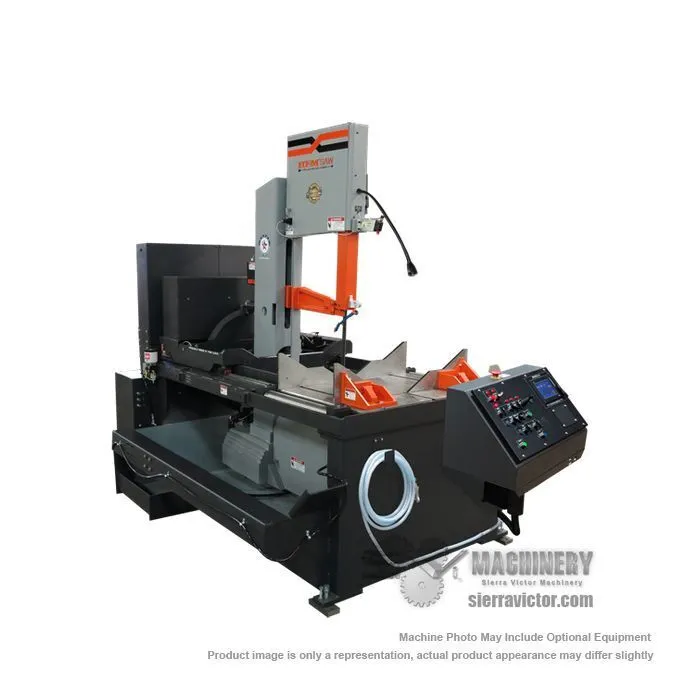

The VT120HM-60-CTS miters up to 60ᵒ in both directions, with a round cutting capacity of 18 inches. The control console is located in a swing-away console at the front of the saw. A touch screen is used to operate the various functions on the saw. 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Semi-Automatic | Semi-Automatic |
| Capacity - Round | 0-18 in. | 0-18 in. |
| Capacity - Square | 0-18 in. | 0-18 in. |
| Capacity - Rectangular | 0-18 W x 0-24 H in. | 0-18 W x 0-24 H in. |
| Blade Size | 16' 6" L x 1.25" H x .042" | 16' 6" L x 1.25" H x .042" |
| Motor | 7.5 HP | 7.5 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 5 HP | 5 HP |
| Power Source | Hydraulic | Hydraulic |
| Cantilever | Fixed | Fixed |
| Bundle Cut | Yes | Yes |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Vise - 2nd Main
Swing-Away Top Clamp - Main Vise
Top Clamp - Reduced Capacity Main Vise
Material List w/ Larger 8" Touch Screen
Passive "Cut Watcher" System
Laser Light System
Chip/Swarf Removal System - Manual Hand-Crank Chip Conveyor
Power Raised Lift Up Rollers
Powered Chip Conveyor
Spray Mist Lubrication
Pedestal Mounted Control Console
Cold Weather Package
Hydraulic Tank Heater
5' Roller Load Table
10' Powered Roller Load Table
5' Roller Discharge Table
10' Roller Discharge Table
10' Powered Roller Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
