Precision built lathe combines accuracy, rigidity and 3-1/8" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 20" | 508 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 3.13" | 79.502 mm |
| Spindle Nose | D1-8 | D1-8 |
| Number Of Spindle Speeds | 12 steps | 12 steps |
| Range Of Speeds | 40 ~ 2,000 rpm | 40 ~ 2,000 rpm |
| Number of Inch Threads | 4 ~ 56 TPI x 36 kinds | 4 ~ 56 TPI x 36 kinds |
| Motor | 10 hp | 7.5 kW |
| Phase | 3 | 3 |
| Dimensions | 90” x 38” x 64” | 90” x 38” x 64” |
| Weight | 4,200 lbs. | 4,200 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

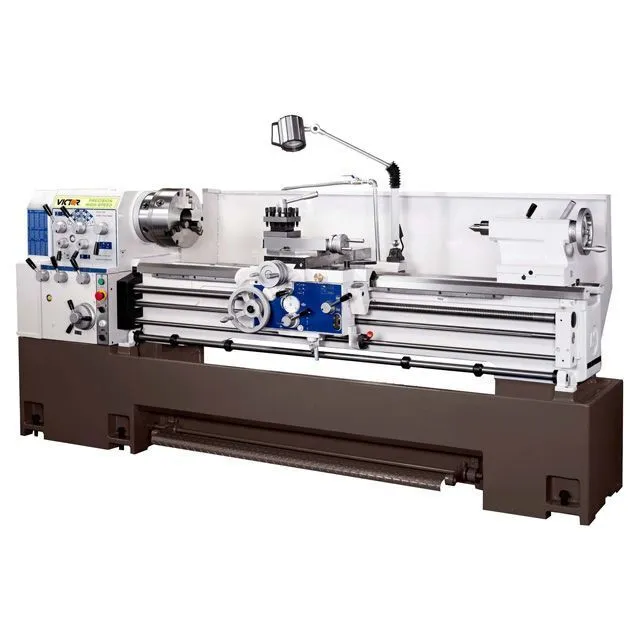

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
10" 3-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Halogen work light
Full length splash guard
Chuck cover w/ limit switch
