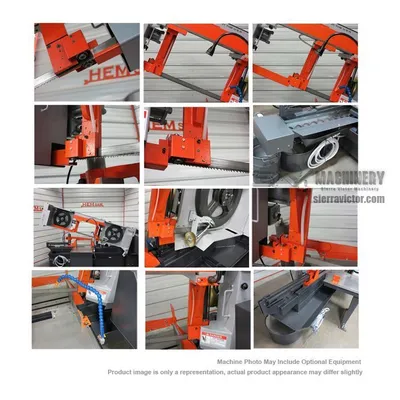

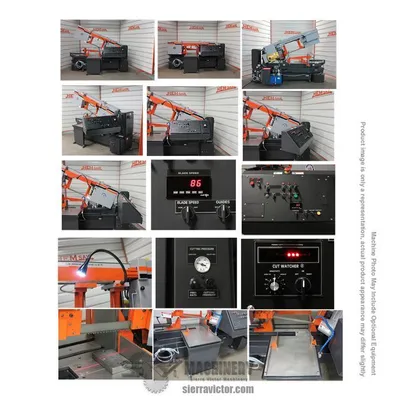

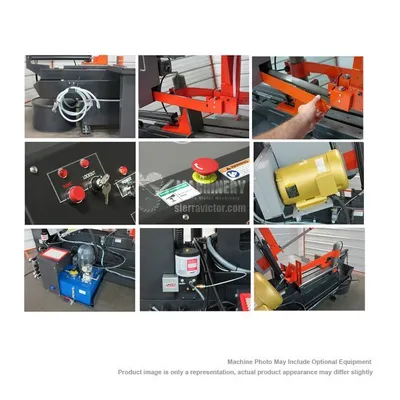

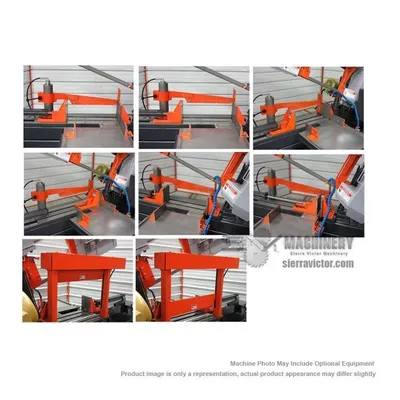

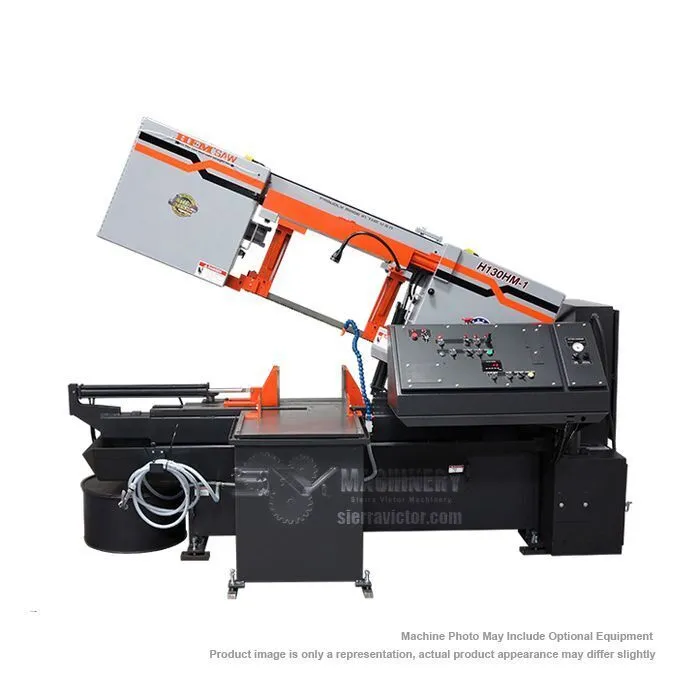

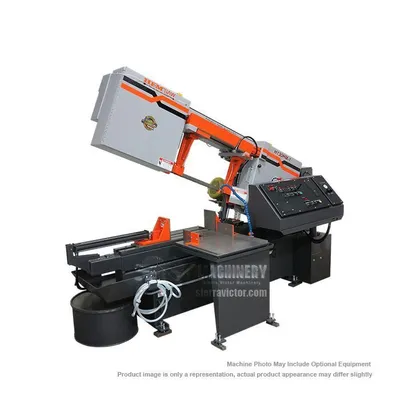

The H130M is a rugged band saw and cuts using a 1½ in. blade driven by a 10 HP motor. Round cutting capacity is 16 inches.A 2 HP hydraulic motor powers the adjustable pressure full-stroking vise, the powered guide arm, and powered blade tension. 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Cutting Capacity Round | 0-16 in. | 0-16 in. |
| Cutting Capacity Square | 0-16 in. | 0-16 in. |
| Cutting Capacity Rectangle | 0-19 W x 0-10 H in. | 0-19 W x 0-10 H in. |
| Power Source | Hydraulic | Hydraulic |
| Blade Size | 17' 0" L x 1.5" H x .050" | 17' 0" L x 1.5" H x .050" |
| Blade Motor | 10 HP | 10 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Bundle Cut | Yes | Yes |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Option items - Call for price:
* Top Clamp - Full Capacity Main Vise
* Vise - Outboard Powered on Discharge
* Passive "Cut Watcher" System
* Laser Light System
* Chip/Swarf Removal System - Chip Auger
* Pedestal Mounted Control Console
* Free-Standing Control Console
* Spray Mist Lubrication
* Cold Weather Package
* Hydraulic Tank Heater
* 5' Idle Roller Stock Table
* 10' Idle Roller Stock Table
