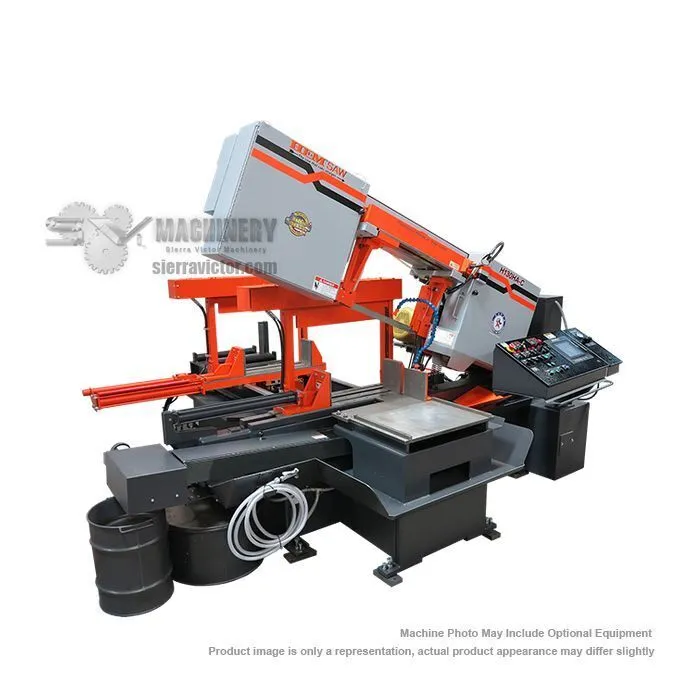

The H130A is known for rugged and dependable band sawing. It has a round cutting capacity of 16 inches. The 10 HP motor powers the 1½” blade and a 2 HP hydraulic motor provides adjustable clamping force, powered guide arm, and powered blade tension. A 48” multi-index servo twin ball-screw bar-feed, Cut Watcher System, and chip auger are standard features. 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Capacity Round | 0-16 in. | 0-16 in. |
| Capacity Square | 0-16 in. | 0-16 in. |
| Capacity Rectangular | 0-19 W x 0-10 H in. | 0-19 W x 0-10 H in. |
| Saw Blade Size | 17' 0" L x 1.5" H x .050" | 17' 0" L x 1.5" H x .050" |
| Power Source | Hydraulic | Hydraulic |
| Motor | 10 HP | 10 HP |
| Power | 220v/3PH or 440v/3PH ** | 220v/3PH or 440v/3PH ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Bar-feed | 0-48 in. (Stroke Servo Twin Ball-Screw - Multiple Index) | 0-48 in. (Stroke Servo Twin Ball-Screw - Multiple Index) |
| Bundle Cut | Yes | Yes |
| Weight | 1500 | 1500 |
** Please Specify (This is Not a Dual Voltage Machine)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
* Heavy-Duty Servo Feed
* Bar-Feed Filler Plates
* Top Clamp - Full Capacity Main & Feed Vise
* Vise - 3rd on Feed
* Vise - Outboard Powered on Discharge
* Interlocking Vise Jaws
* Remote Diagnostics
* Laser Light System
* Pedestal Mounted Control Console
* Spray Mist Lubrication
* Cold Weather Package
* Hydraulic Tank Heater
* 5' Idle Roller Stock Table
* 10' Idle Roller Stock Table
