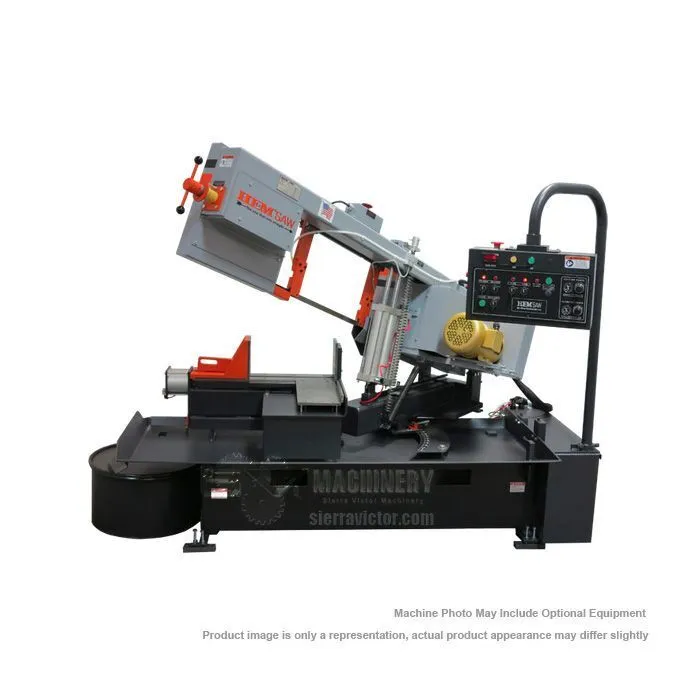

HE&M SIDEWINDER-M Manual Horizontal Miter Bandsaw has a 16" W x 12.75" H cutting capacity and is MADE IN USA!The Sidewinder M saw cuts miters up to 60ᵒ in one direction and is ideal for cutting small solids and structural shapes.The control allows semi-automatic sawing with the Cutting Force, adjustable Clamping Pressure, and push button Blade Speed simple to adjust.
| Cutting Capacity | 16 W x 12.75 H in. | 16 W x 12.75 H in. |
| Blade Size | 13 ft 6 in. x 1 in. x .035 in. | 13 ft 6 in. x 1 in. x .035 in. |
| Motor | 3 HP | 3 HP |
| Power | 220v or 440v, 3-phase * | 220v or 440v, 3-phase * |
| Power Source | Air | Air |
| Minimum Air Requirement | 85 PSI, 4-6 CFM ** | 85 PSI, 4-6 CFM ** |
| Bundle Cut | Yes | Yes |
* This is Not a Dual Voltage Machine
** Equipped w/Air Filter/Lubricator
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
We Are an Authorized HE&M Distributor in the Following States: FL, GA, NC, SC, VA
Optional Items - Call for price:
Top Clamp - Reduced Capacity Main Vise
Full Width Discharge Plate
Light Clamping Pressure
Laser Light System
Spray Mist Lubrication
5' Roller Stock Table
10' Idle Roller Stock Table
Single-Phase Voltage
