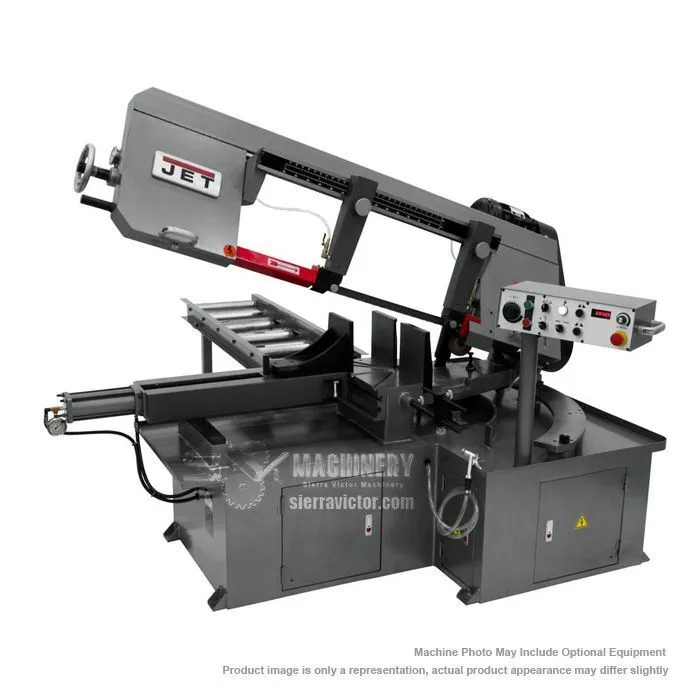

The JET Elite Dual Mitering Horizontal bandsaw's unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds.
| Round at 90° | 13" | 330.2 mm |
| Square at 90° | 13 in. | 13 in. |
| Rectangle at 90° | 12 x 23-1/2 in. | 12 x 23-1/2 in. |
| Round at 45° | 13" | 330.2 mm |
| Square at 45° | 13 in. | 13 in. |
| Rectangle at 45° | 8 x 16 in. | 8 x 16 in. |
| Round at 60° | 11" | 279.4 mm |
| Square at 60° | 11 in. | 11 in. |
| Rectangle at 60° | 7 x 12 in. | 7 x 12 in. |
| Solid Round at 90° | 13" | 330.2 mm |
| Solid Square at 90° | 13 in. | 13 in. |
| Solid Rectangele at 90° | 12 x 23-1/2 in. | 12 x 23-1/2 in. |
| Solid Round at 45° | 13" | 330.2 mm |
| Solid Square at 45° | 13 in. | 13 in. |
| Solid Rectangele at 45° | 8 x 16 in. | 8 x 16 in. |
| Solid Round at 60° | 11" | 279.4 mm |
| Solid Square at 60° | 11 in. | 11 in. |
| Solid Rectangele at 60° | 7 x 12 in. | 7 x 12 in. |
| Blade Size | 1-1/4 x 0.043 x 172 in. | 1-1/4 x 0.043 x 172 in. |
| Blade Wheel Diameter | 16" | 406.4 mm |
| Blade Speed | 50 - 297 sfpm (Electronic Variable Speed) | 50 - 297 sfpm (Electronic Variable Speed) |
| Blade Motor | 3 HP | 3 HP |
| Power | 460v, 3-Phase | 460v, 3-Phase |
| Prewired | 230v | 230v |
| Head Movement | 45°R, 60°L | 45°R, 60°L |
| Bed/Table Height | 27.75" | 704.85 mm |
| Vise Opening | 26" | 660.4 mm |
| Dimensions | 88 x 55 x 51 in. (L x W x H) | 88 x 55 x 51 in. (L x W x H) |
| Weight | 1,826 lbs. | 1,826 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
Optional Items - Call for price:
JT9-413413 - Roller Table for MBS-1232EVS-H Saw: $1,329.00
