New | in-Stock

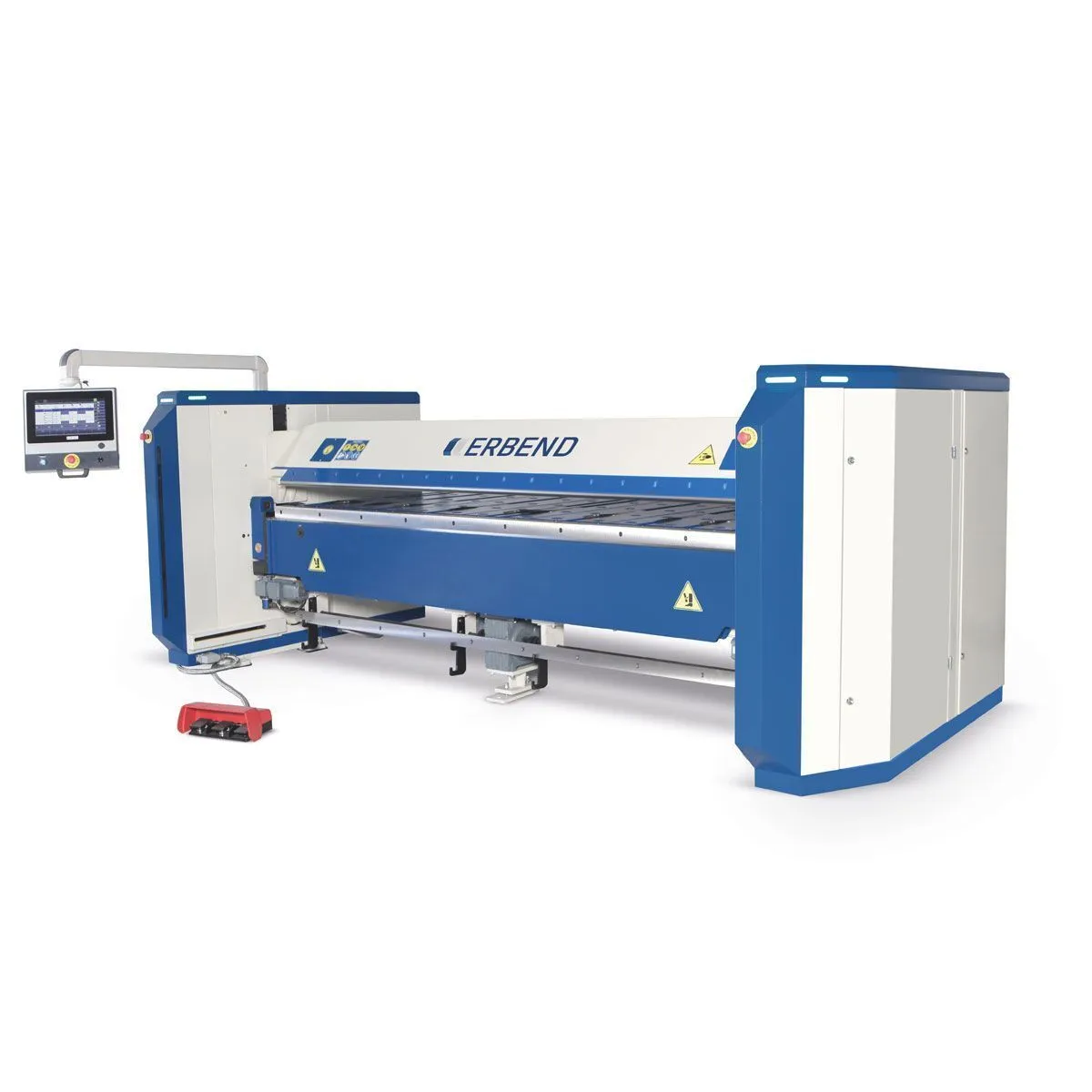

NEW ERBEND MFB 2525

Florida, United States
3,852Listings|9Followers
Overview
Folding machines

ERBEND MFB 2525 CNC Folder has a max sheet length of 8 ft and mild steel capacity of 12 gauge.ERFOLD BASIC CNC LBL CNC control software on 15.6 inch touchscreen controller with swivel arm.220 mm opening height capacity on the upper beam.1000 mm servo backgauge system with feather grooves.

Specs
Max Sheet Length
100"
2,540 mm
Max Sheet Length
8'
2.4 m
Mild Sheet
0.098"
2.4892 mm
Stainless
0.059"
1.4986 mm
Aluminum
0.137"
3.4798 mm
Upper Beam (Z axis) - Opening height (without tools)
7.87 in.
7.87 in.
Upper Beam (Z axis) - Motor Power (Sew Eurodrive AC)
1,5 kW
1,5 kW
Upper Beam (Z axis) - Transmission system
Eccentric
Eccentric
Upper Beam (Z axis) - Clamping speed
3.54 in./sec
3.54 in./sec
Folding Beam (Y axis) - Folding angle
0 - 150°
0 - 150°
Folding Beam (Y axis) - Motor Power (Sew Eurodrive AC)
2,2 kW
2,2 kW
Folding Beam (Y axis) - Folding Speed
80°/sec
80°/sec
Folding Beam Height Adjustment (A1-A2 axis) - Adjustment height
0 / -1.37 in.
0 / -1.37 in.
Folding Beam Height Adjustment (A1-A2 axis) - Control
Manual
Manual
Back gauge system (X axis) - Movement speed
11.81 in./sec
11.81 in./sec
Back gauge system (X axis) - Motor Power (Servo)
400 W
400 W
Back gauge system (X axis) - Positioning / repeatability accuracy
+/- 0,1 mm
+/- 0,1 mm
Weight
8929
8929

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
