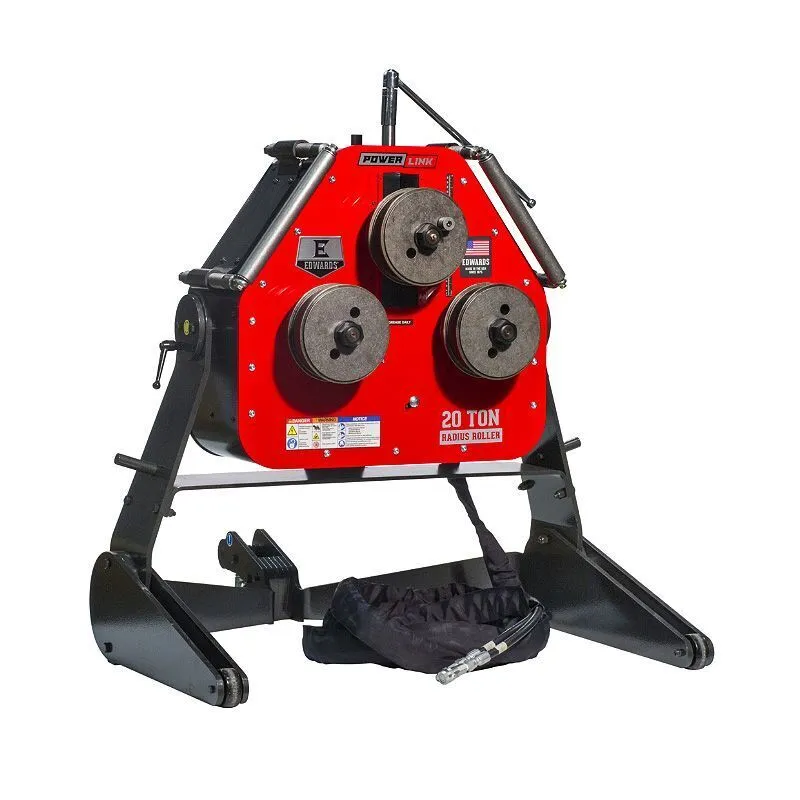

NEW EDWARDS ED9-HAT5000

Florida, United States
Asking Price
USD $11,259.00
1 available
3,831Listings|9Followers
Overview
Angle Bending Rolls

Designed for medium to heavy material, the Edwards ED9-HAT5000 Radius Roller powers through your job quickly and accurately. The variable speed hydraulic drive allows you to dial in the appropriate speed for various materials. Quickly change the orientation from vertical for smaller projects to horizontal for those larger, heavier jobs.

Specs
Shaft Diameter
2"
50.8 mm
Angle Roll Type
Hydraulic
Hydraulic
Motor Power
Standard 5 HP 3~ 208 V or 230 V 1725 RPM 14 A (specify)*
Standard 5 HP 3~ 208 V or 230 V 1725 RPM 14 A (specify)*
Pipe Capacity
2" Schedule 40
2" Schedule 40
Round Tube Capacity
2-1/2" (.095")
2-1/2" (.095")
Square Tube Capacity
2" (.120")
2" (.120")
Solid Square Tube
1.375"
1.375"
Flat Bar Easy Way
3" (3.50")
3" (3.50")
Flat Bar Hard Way
2.25" (3.75")
2.25" (3.75")
Angle Iron Capacity
2" (.250")
2" (.250")
Distance Between Shaft Centers
14.12"
14.12"
Reservoir
7 Gallons
7 Gallons
Valve Pressure
2750 PSI
2750 PSI
Hydraulic Pump
3-1/2 GPM - 1 Stage
3-1/2 GPM - 1 Stage
Shipping Weight
950 lb
430.9 kg
Dimensions
Height 43" x Width x 45" x Depth 49"
Height 43" x Width x 45" x Depth 49"
Weight
950 lbs.
950 lbs.

*Optional Motor:
5 HP 3~ 460 V, 1725 RPM 7 A
5 HP 3~ 575 V, 1725 RPM 6 A
5 HP 1~ 230 V, 1725 RPM 23 A

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
