U.S. INDUSTRIAL 2VH-3-KIT Manual Variable Speed Milling Machine Package has a 9" x 49" table size. 3 HP, 220v or 440v, 3 Phase Spindle Drive and Vari-Speeds Spindle Range 60 to 4200 RPM. Standard equipment includes: Heavy duty power table feed on X axis, Flood coolant pump, hose, nozzle, Chip pan, Machine light, Front and Rear way covers and Three axis digital readout.
| Power | 3 hp | 2.2 kW |
| Taper | R8 | R8 |
| Dimensions | 6' x 6' x 80" | 6' x 6' x 80" |
| Weight | 2,550 lbs. | 2,550 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

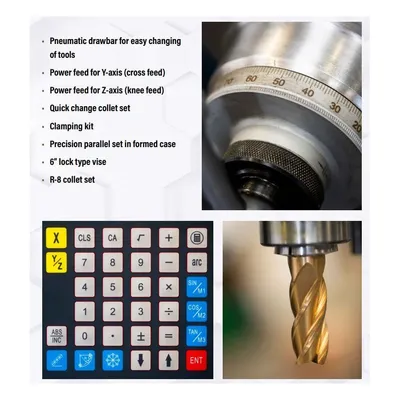

OPTIONAL ITEMS - CALL FOR PRICE:
UPM1500: Transformer for 3EVH-5 Milling Machine for 440/460/480 Volts
(*This option only applies to the 3EVH-5-KIT Model and must be purchased if the 3EVH-5 is to be set up for 440 volts.)
UPM1501: Air Power Drawbar
UPM1502: Bestline Power Feed for Y-Axis
UPM1503: Bestline Power Feed for Z-Axis
UPM1504: Mill QC Collet Set
UPM1505: Clamp Kit
UPM1506: Precision Parallel Set
UPM1507: 6" Lock Type Milling Vise
UPM1508: R-8 Collet Set
