OUT OF STOCK - CALL FOR AVAILABILITY

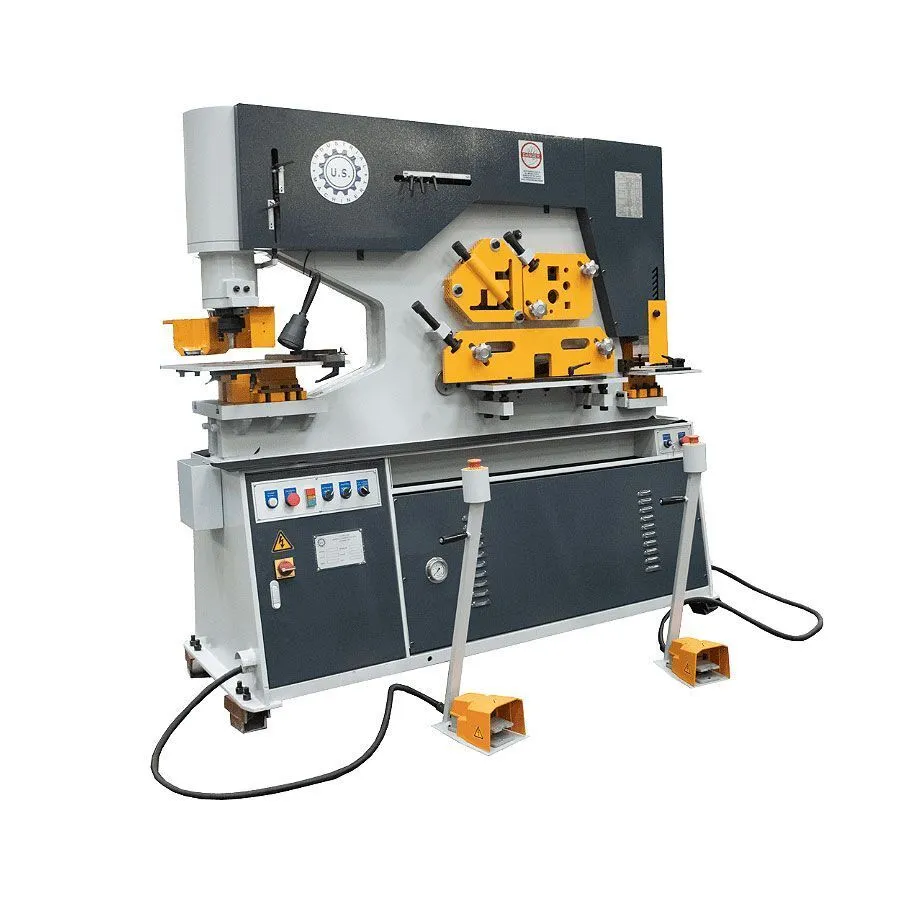

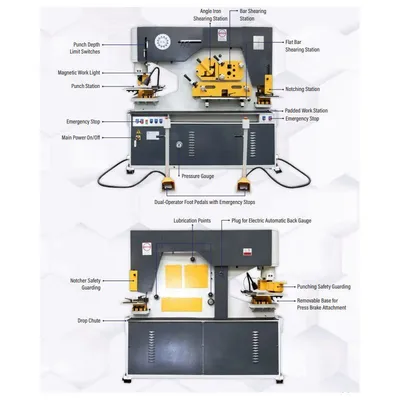

U.S. INDUSTRIAL USHI-90T-DO-XT Hydraulic Ironworker w/14" Standard Punch Throat has a punch tonnage of 90 Tons. Five workstations: punch, plate shear, angle shear, rod shear notcher, plus press brake attachmentHas a 10 HP motor, 3-phase with 220V or 440V.
| Punch Tonnage | 90 T | 81,646.7 kg |
| Punching Thickness | 0.75" | 19.05 mm |
| Punching Diameter | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear | Max. Thickness 14 W x 3/4 in. Thick / Max. Length 18 W x 5/8 in. Thick | Max. Thickness 14 W x 3/4 in. Thick / Max. Length 18 W x 5/8 in. Thick |
| Flat Bar Shear Length | 19" | 482.6 mm |
| Angle Shear 90° | 5-1/2 x 5-1/2 x 1/2 in. | 5-1/2 x 5-1/2 x 1/2 in. |
| Angle Shear 45° | 2 x 2 x 3/8 in. | 2 x 2 x 3/8 in. |
| Round Bar Shear | 2 in. | 2 in. |
| Square Bar Shear | 2 in. | 2 in. |
| Notcher | Thickness 1/2 x Width 2-1/4 x Depth 4 in. | Thickness 1/2 x Width 2-1/4 x Depth 4 in. |
| Throat Depth | 17" | 431.8 mm |
| Stroke Length | 0 - 3-1/8 in. | 0 - 3-1/8 in. |
| Motor | 10 HP | 10 HP |
| Electrics | 220v or 440v, 3-phase (Specify) | 220v or 440v, 3-phase (Specify) |
| Oil Capacity/Reservoir | 25 gal | 94.6 L |
| Dimensions | 73 x 35 x 74 in. | 73 x 35 x 74 in. |
| Weight | 5,260 lbs. | 5,260 lbs. |
* With squaring arm removed
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
UPIW1500 - Round Punch and Die Set for 66 and 90 Ton Models
UPIW1501 - Round Punch and Die Set for 125 and 155 Ton Models
UPIW1502 - Pipe Notcher Housing Assembly
UPIW1503 - 1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1504 - 3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1505 - 1" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1506 - 1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1507 - 1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1508 - 2" Ironworker Pipe Notching Die for Schedule 40 Pipe
