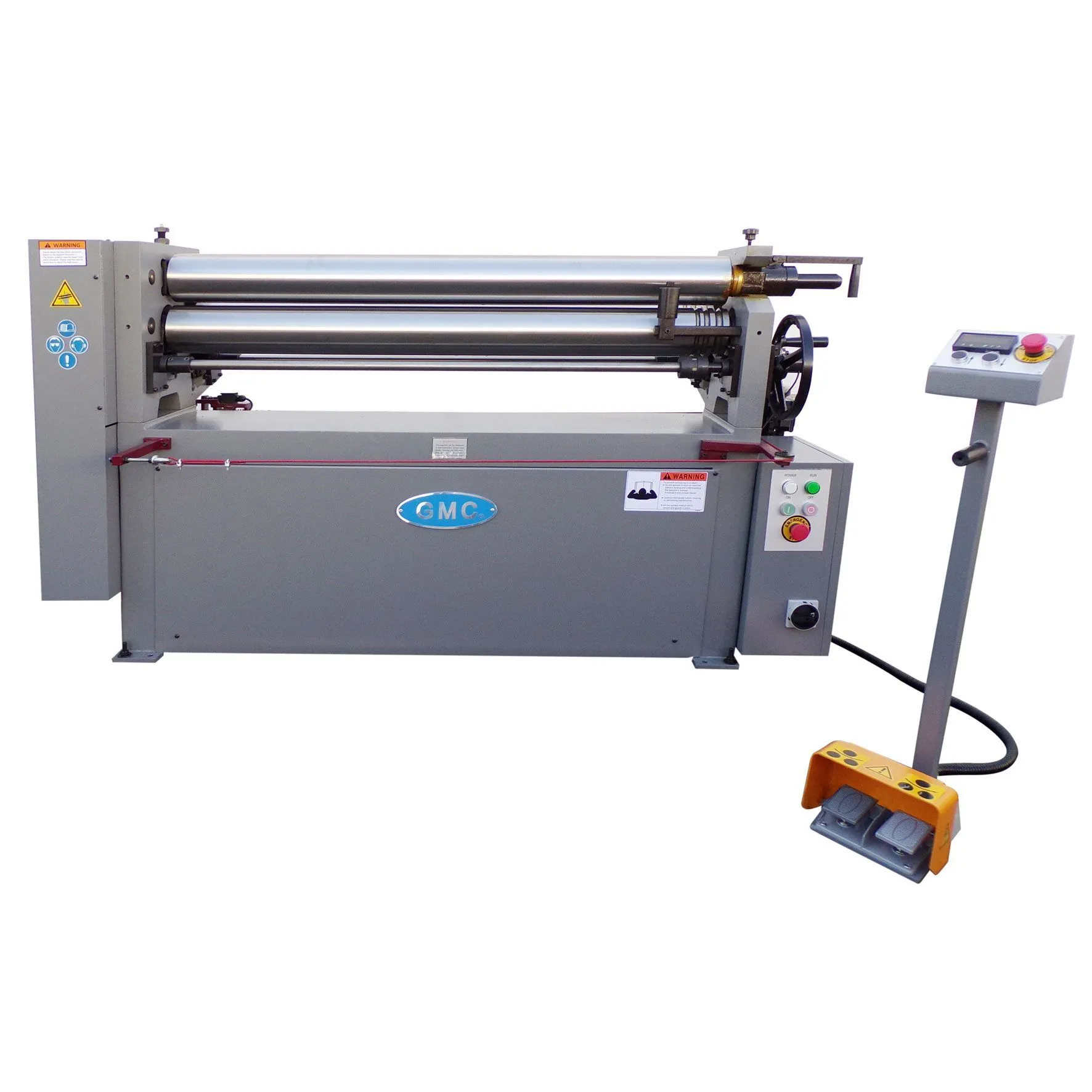

NEW GMC MACHINE TOOLS PBR-0810E

Florida, United States
Asking Price
USD $26,850.00
1 available
3,834Listings|9Followers
Overview
Plate Bending Rolls including Pinch

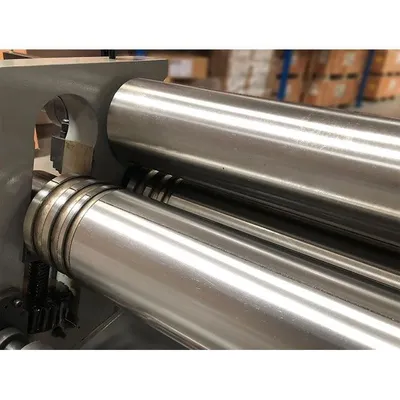

GMC PBR-0810E Bending Roll with mild steel capacity of 8 feet x 10 gauge, Power source 220 volt. E models come with motorized bending roll up/down with push button and digital display for easy operation of repeat jobs.This machine is made in Taiwan.All (3) rolls are hardened rolls as standard feature (all are HR models). 3-rollers are driven to perform high accuracy. 3/8”, 1/2” and 5/8” grooves on rollers.Heavy duty all steel welded construction.

Specs
Length of Rolls
8'
2.4 m
Capacity - Mild Steel
10 gauge
10 gauge
Capacity - Stainless Steel
14 gauge
14 gauge
Capacity - Soft Aluminum
0.25"
6.35 mm
Min. Thickness
26 gauge
26 gauge
Rolls Opening
0.5"
12.7 mm
Roll Diameter
6"
152.4 mm
Rolls Speed
17 ft/min.
5,181.6 mm/min.
Min. Bending Dia.
8"
203.2 mm
Pre-bend
0.12"
3.048 mm
Power
4 hp
3 kW
Voltage
220V or 440V (specify)
220V or 440V (specify)
Phase
3-phase
3-phase
Dimensions
132 x 35 x 56 in.
132 x 35 x 56 in.
Weight
4,550 lbs.
4,550 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
