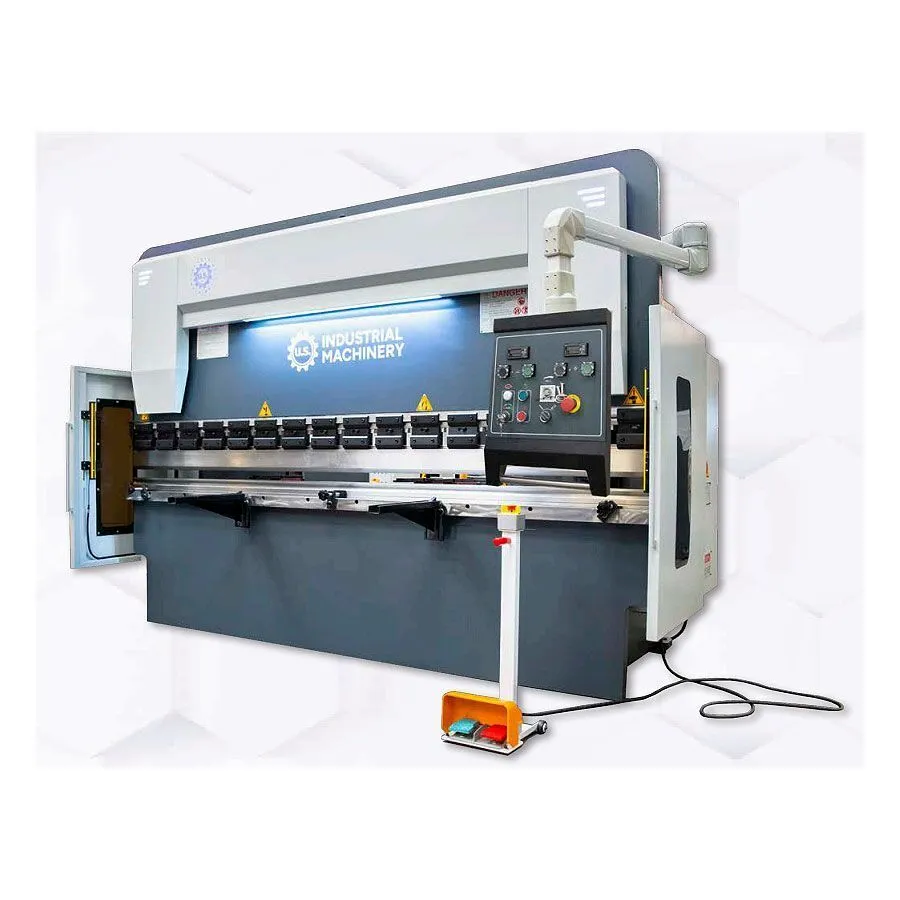

U.S. INDUSTRIAL USHB88-8HM Hydraulic Manual Press Brake w/Front Operated Power Backgauge and Power Ram Adjust has a 88Ton working pressure and 8 ft Length of working table. The manual press brakes have all the same safety features of the CNC models, manual press brakes are powerful machines that are easy to get started on and great for more straightforward jobs. They include a front-operated power back-gauge and ram adjust with digital readouts and fine adjustment handwheels for both. Our models range from 22 tons to 440 tons.
| Pressure Tonnage | 88 T | 79,832.4 kg |
| Distance Between Housings | 81.8" | 2,077.7 mm |
| Table Length | 98.4" | 2,499.4 mm |
| Throat depth | 9.8" | 248.92 mm |
| Pressing Speed | Dependent on Tool Load | Dependent on Tool Load |
| Stroke Adjustment of Ram | 1.96" | 49.784 mm |
| Rapid Ram Travel Speed | 2.4 in/sec. | 61 mm/sec. |
| Rapid Ram Retreat Speed | 2 in/sec. | 50.8 mm/sec. |
| Ram Travel | 3.93" | 99.822 mm |
| Open Height | 13.7" | 347.98 mm |
| Backgauge Travel | 24" | 609.6 mm |
| Hydraulic Oil Capacity | 60 gal | 227.1 L |
| Motor | 10 HP, 220 or 440V, 3 ph (specify) | 10 HP, 220 or 440V, 3 ph (specify) |
| Shipping Dimensions (L x W x H) | 120 x 64 x 90 in. | 120 x 64 x 90 in. |
| Shipping Weight | 12,127 lb | 5,500.7 kg |
| Dimensions | 120 x 64 x 90 in. | 120 x 64 x 90 in. |
| Weight | 12127 lbs. | 12127 lbs. |
*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for price:
Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4)
Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4)
Manual (hand-crank) Mechanical Bed Crowning Device
Upgrade to Cam-Lever Quick Action Ram Clamps
Training in our Memphis, TN Showroom
Training at customer site, less than 300 miles from Memphis
Training at customer site, more than 300 miles from Memphis
Training outside continental USA
